Leon Mk2

Repairing clutch release mechanism
Repairing clutch release mechanism
Special tools and workshop equipment required

t  Torque wrench -V.A.G 1331-
  W00-0427

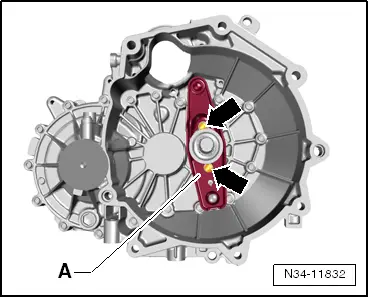

Removing and installing clutch release lever -A- with release bearing and guide sleeve
–  Remove bolts -arrows-.
–  Remove clutch release lever using the clutch release collar and input shaft and knuckle pin guide sleeves.
Installation is carried out in reverse order.
  N34-11832
Removing and assembling the guide sleeve
–  Detach the guide sleeve -3- from the clutch release collar -2- by pressing upwards.
–  Rotate guide sleeve -3- about 90º in the direction of the arrow in relation to the clutch release collar -2- until the tabs of the guide sleeve are in the recesses -4- of the clutch release collar.
–  In this position, extract the guide sleeve for the clutch release bearing.
Installation is carried out in reverse order.
  N30-0354
Removing and installing release bearing
–  Press locking lugs -arrows- together on reverse side of clutch release lever and remove release bearing -A- from clutch release lever.
–  To install, press release bearing -A- into clutch release lever until retaining lugs -arrows- engage.
  A30-0068
