Leon Mk2

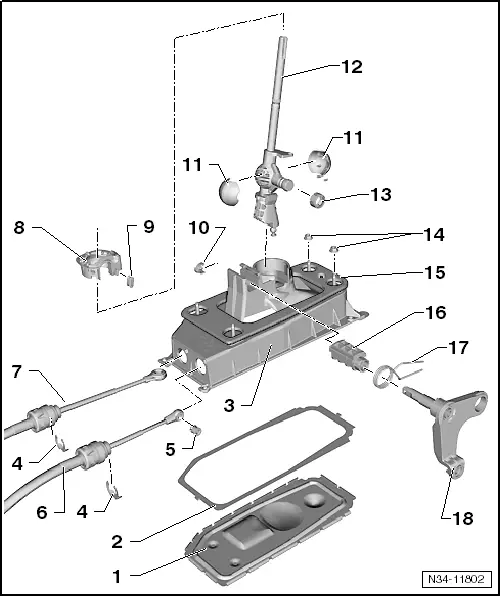

| Assembly overview - Selector lever and selector housing |
Note| t | Lubricate bearing positions and sliding surfaces. Allocate grease using → Electronic parts catalogue (ETKA). |
| t | Dismantling and assembling selector mechanism → Chapter. |
| 1 - | Lower plate |
| q | Availability → Electronic parts catalogue (ETKA) |
| q | Bend open tabs to remove |
| 2 - | Seal |
| q | Availability → Electronic parts catalogue (ETKA) |
| 3 - | Lever protection box |
| q | Availability → Electronic parts catalogue (ETKA) |
| 4 - | Securing clip |
| q | Take care not to damage selector cables when removing. |
| q | Always replace. |
| 5 - | Drift sleeve |
| q | Availability → Electronic parts catalogue (ETKA) |
| 6 - | Selection control cable |
| q | Availability → Electronic parts catalogue (ETKA) |
| q | Lever off gate selector lever |
| q | Press onto gate selector lever inside selector mechanism |
| q | Installation position → Chapter |
| 7 - | Gear selector cable |
| q | Availability → Electronic parts catalogue (ETKA) |
| q | Lever off gear lever guide |
| q | Press onto gear lever guide inside selector mechanism |
| q | Installation position → Chapter |
| 8 - | Bearing cap |
| q | Availability → Electronic parts catalogue (ETKA) |
| q | Will be damaged during removal |
| 9 - | Damper |
| q | Availability → Electronic parts catalogue (ETKA) |

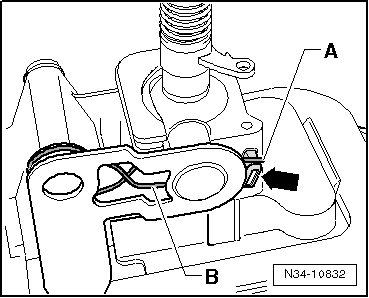

| q | Removing and installing → Fig.>>>>>>>> |
| 10 - | Wiring clip |
| q | Secures gate selector lever. |
| q | Check for damage |
| 11 - | Bearing cap |
| q | Installation position → Fig. |
| q | Fit onto gear lever. |
| q | Gear lever and ball sockets are listed as one replacement part. |
| 12 - | Gear lever |
| q | Availability → Electronic parts catalogue (ETKA) |
| q | Gear lever and ball sockets are listed as one replacement part. |
| q | Availability → Electronic parts catalogue (ETKA) |
| 13 - | Mounting bush |
| q | Installation position → Fig. |
| q | Fit onto gear lever. |
| q | Supports gear lever in gate selector lever. |
| 14 - | Hexagon nut M8, 25 Nm, hexagon nut M 6, 8 Nm |
| q | 4 units |
| 15 - | Seal |
| q | Availability → Electronic parts catalogue (ETKA) |
| q | Between selector housing and underbody |
| q | Self-adhesive |
| q | Bond to selector housing |
| 16 - | Mounting bush |
| q | Availability → Electronic parts catalogue (ETKA) |
| q | Installation position → Fig. |
| 17 - | Compression spring |
| q | Availability → Electronic parts catalogue (ETKA) |
| 18 - | Selector bracket |
| q | Availability → Electronic parts catalogue (ETKA) |
