Leon Mk2

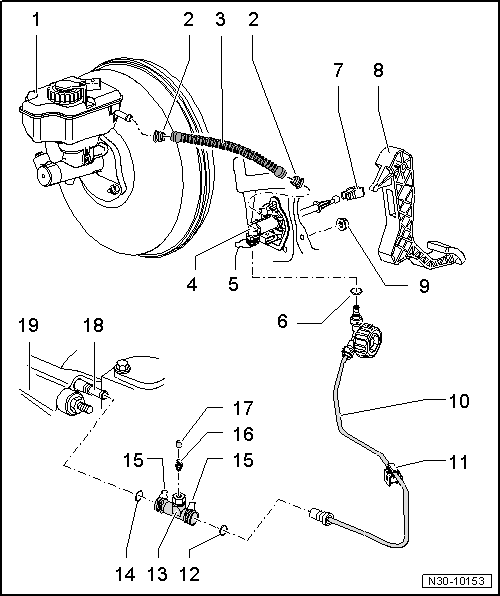

| Assembly overview - hydraulics (LHD) |
| 1 - | Brake fluid reservoir |
| 2 - | Seal |
| q | The seals must be located in supply hose |
| 3 - | Supply hose |
| 4 - | Master cylinder |
| q | Removing and installing → Chapter |
| 5 - | Clip |
| q | Pull clip out to stop to remove or install pipe line |
| 6 - | Seal / O-ring |
| q | Pull onto line connection |
| q | Insert with brake fluid |
| q | Seals/O-rings are adapted to configuration of line connection → Fig. |
| q | Allocation → Electronic parts catalogue „ETKA“ |
| 7 - | Mounting bracket |
| q | To remove and install, separate master cylinder from clutch pedal → Chapter |
| 8 - | Clutch pedal |
| q | Removing and installing → Chapter |
| 9 - | Hexagon nut, self-locking, → Item |
| 10 - | Pipe line |
| q | Allocation → Electronic parts catalogue „ETKA“ |
| q | To remove, remove battery and battery tray → Electrical system; Rep. gr.27 |
| 11 - | Spring retainer |
| q | Attached to body |
| 12 - | Seal / O-ring |
| q | Pull onto line connection |
| q | Insert with brake fluid |
| q | Seals/O-rings are adapted to configuration of line connection → Fig. |
| q | Allocation → Electronic parts catalogue „ETKA“ |
| 13 - | Bleeding equipment |
| 14 - | Seal / O-ring |
| q | Pull onto line connection |
| q | Insert with brake fluid |
| q | Seals/O-rings are adapted to configuration of line connection → Fig. |
| q | Allocation → Electronic parts catalogue „ETKA“ |
| 15 - | Clip |
| q | Pull out clip to stop to remove and install pipe line or bleeder. |
| 16 - | Bleeder valve |
| q | Bleed the clutch system → Chapter. |
| 17 - | Protective cap |
| 18 - | Clutch slave cylinder |
| q | Can be renewed only with gearbox removed |
| q | Removing and installing → Chapter |
| 19 - | Gearbox |
|
|
| Item | Material of line connection |
| 1 | Line connection with circumferential groove -arrow 1- |
| 2 | Line connection with shoulder -arrow 2- |
| 3 | Line connection with shoulder -arrow 2- and circumferential groove -arrow 3- |
|
