Rain and light recognition sensorG397 Remove
Rain and light recognition sensorG397 Remove
Rain and light recognition sensor -G397- Remove
–
Switch off ignition and remove key.
–
Remove the cover
-1-
of the rain and light recognition sensor -G397- using the lever -U 30800-.
–
Remove the metal bracket
-1-
in the direction of the
-arrow-
through the clips
-2-
that have been hung out.
–

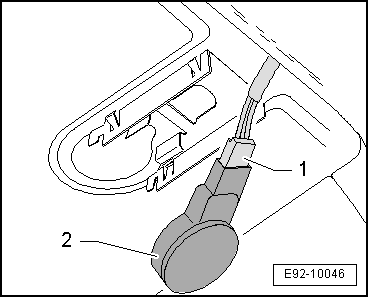

Remove the rain and light recognition sensor -G397-
-2 -
from the bracket and unplug the connector
-1-
.
Note
The gel cushion
-1-
can remain stuck on the window or on the rain and light recognition sensor -G397-.
