Leon Mk2
Sliding/tilting sunroof frame - removal |
– | Moulded headliner trim → General body repairs, interior; Rep. gr.70 |

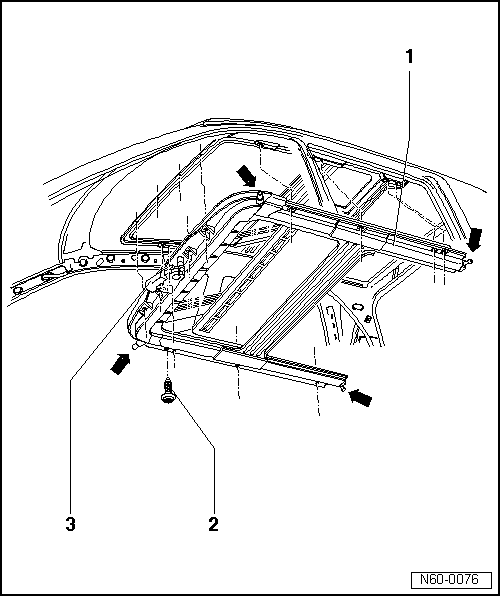

– | Extract the flexible drain hoses -arrows- from the sunroof frame -1-. |
– | Detach the connector -3- from the sunroof motor. |
– | With the aid of a second operator undo the bolts -2- and remove the sunroof frame. |
