Leon Mk2
| Airbag system |

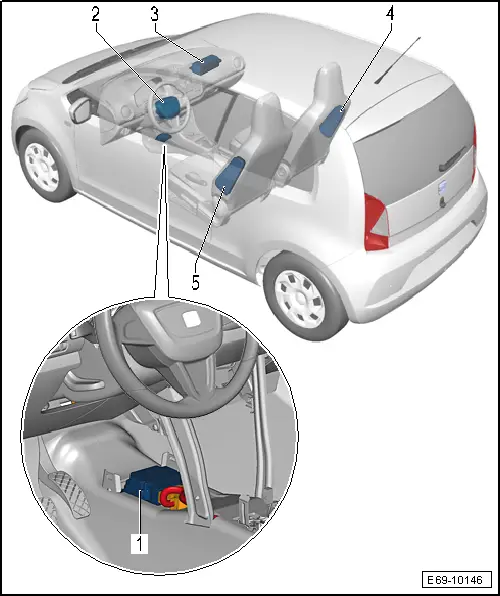

Note| The figure shows the installation locations for a 3-door model. |
| 1 - | Airbag control unit -J234- |
| q | Assembly overview → Chapter |
| q | removing and fitting → Chapter |
| 2 - | Driver side airbag with driver side airbag igniter -N95- |
| q | removing and fitting → Chapter |
| 3 - | Front passenger airbag with igniter 1 for front passenger airbag -N131- |
| q | removing and fitting → Chapter |
| q | Can be locked and activated via key-operated switch to deactivate front passenger airbag -E224- |
| 4 - | Side airbag on front passenger side with side airbag igniter on front passenger side -N200- |
| q | removing and fitting → Chapter |
| 5 - | Side airbag on driver side with side airbag igniter on driver side -N199- |
| q | removing and fitting → Chapter |
