Removing

–	Remove seat → Chapter.

–	Position backrest upright and push seat padding on frame forwards (seat adjustment towards front).

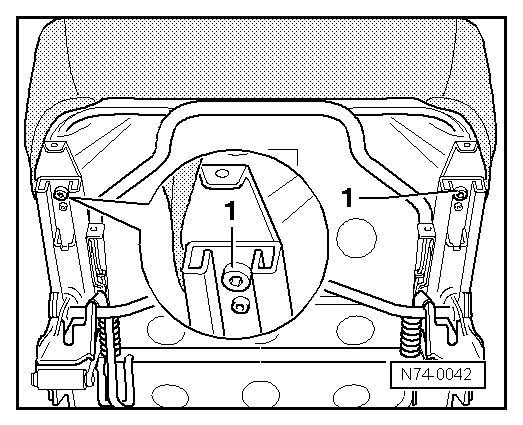

–	Unscrew hexagon socket head bolts -1- (8 Nm) at front beneath seat base.

Note

The side trim need not be removed.

–	Push seat padding on frame backwards (seat adjustment towards rear).

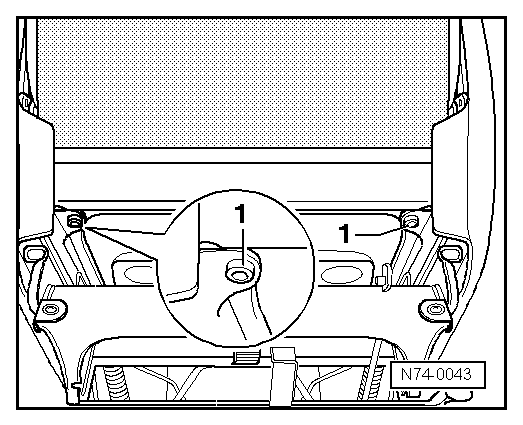

–	Unscrew hexagon socket head bolts -1- (8 Nm) at rear beneath seat base.

–	Remove padding with seat base from seat frame.

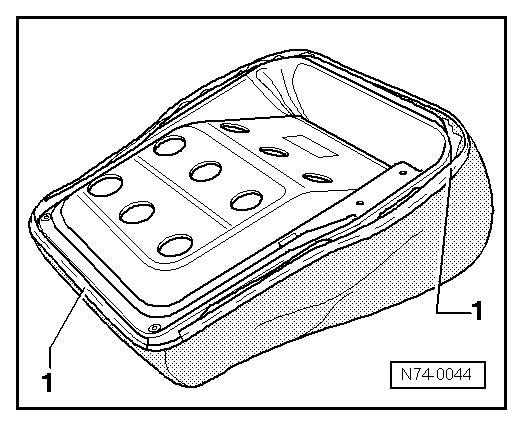

–	Release clamping strip -1- from seat base.

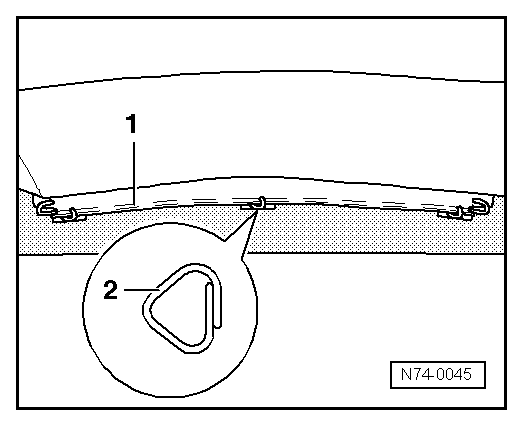

–	Fold cover up until padding wires -1- become visible.

–	Cut through padding clips -2- (Qty. 6) and take cover off padding.
