Page 1

background image

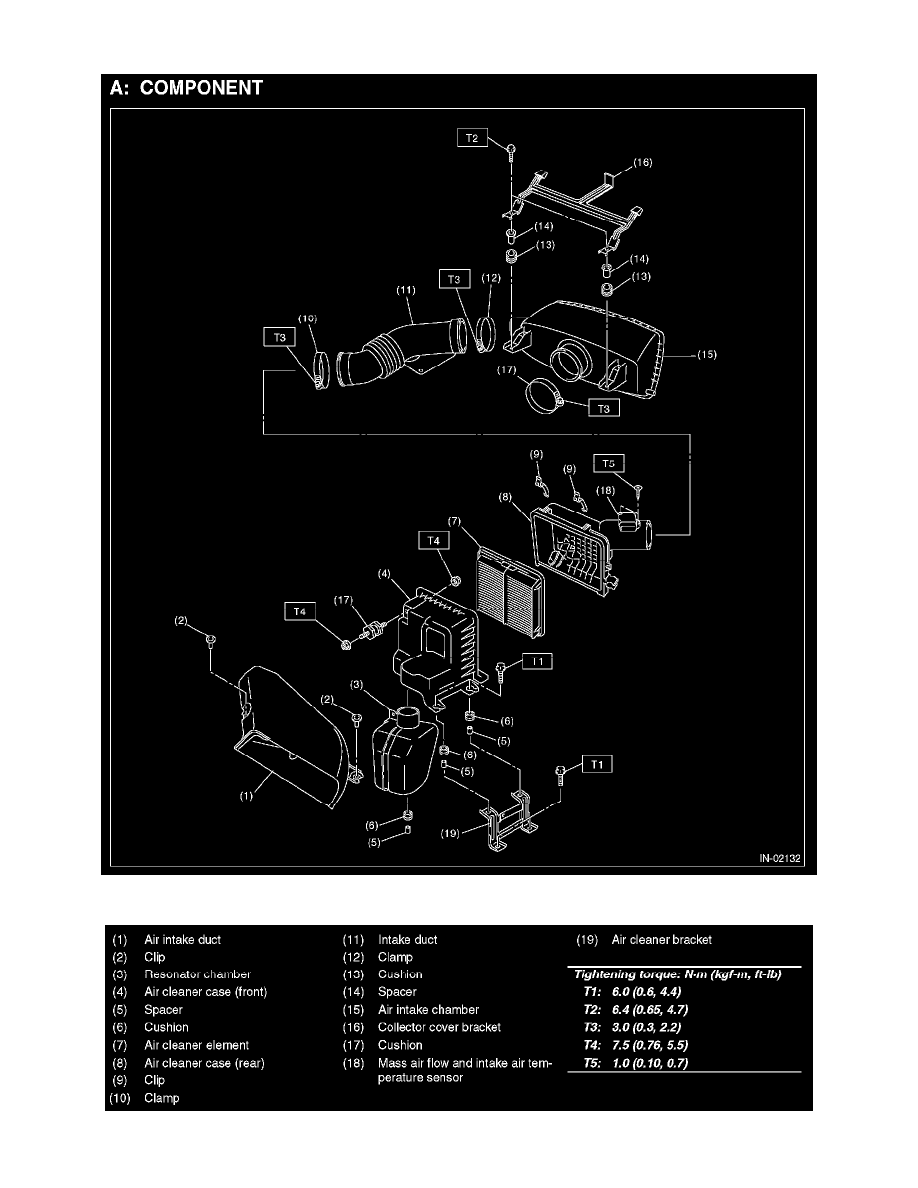

Intake Manifold: Diagrams

General Description

General Description (Part 2)

Engine, Cooling and Exhaust
Engine
Intake Manifold
Component Information
Diagrams
