B9 Tribeca F6-3.0L DOHC (2006)
Backup Lamp Relay: Testing and Inspection
INSPECTION

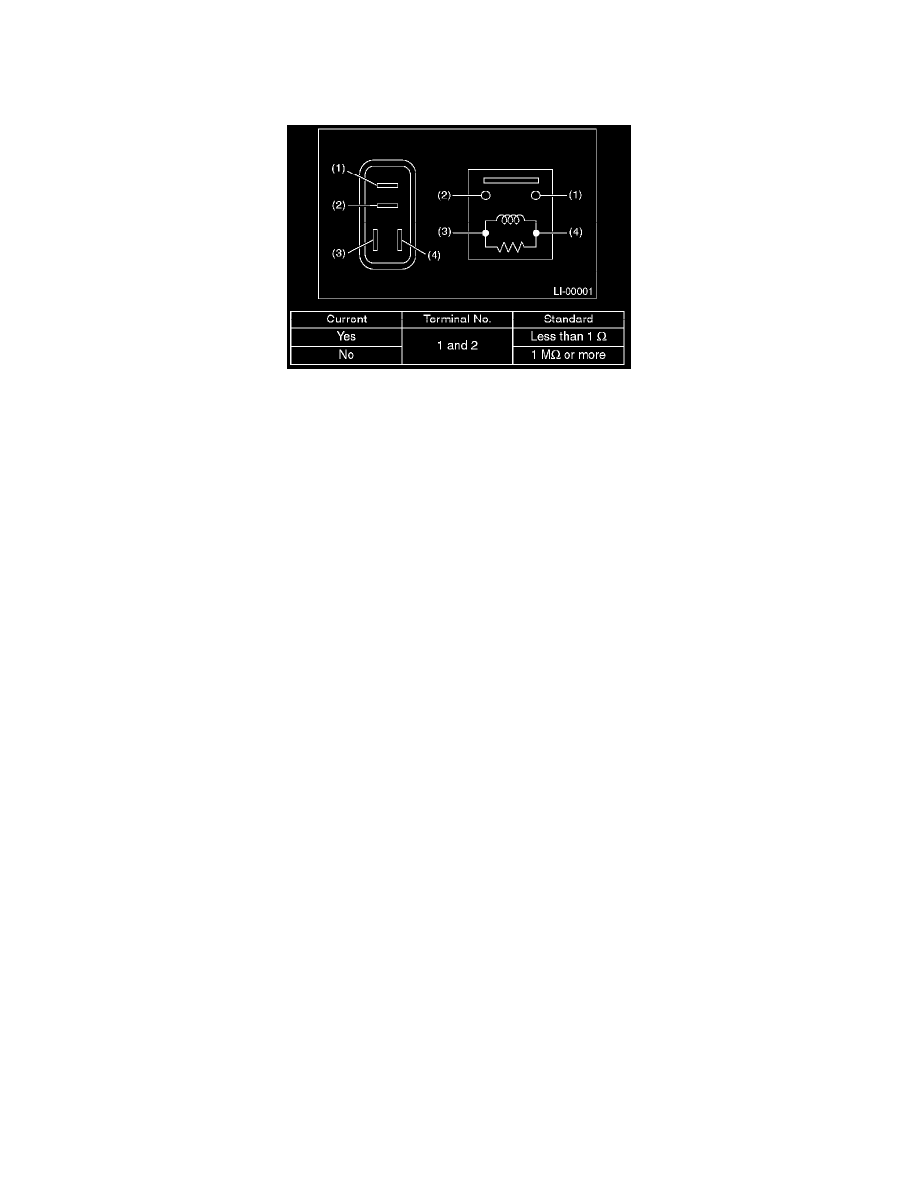

BACK-UP LIGHT RELAY
Measure the resistance between headlight relay terminals when connecting terminal No. 4 to the battery positive terminal and terminal No. 3 to the
battery ground terminal.
