B9 Tribeca F6-3.0L DOHC (2006)
Seals and Gaskets: Service and Repair
Extension Case Oil Seal
Extension Case Oil Seal
INSPECTION
Inspect there is no ATF leakage from the joint of transmission and propeller shaft. If a leak is found, replace the oil seal.
REPLACEMENT
1. Lift-up the vehicle.
2. Clean the transmission exterior.
3. Remove the ATF drain plug to drain ATF.
CAUTION: Immediately after the vehicle has been running or after idling for a long time, the ATF will be hot. Be careful not to burn yourself.

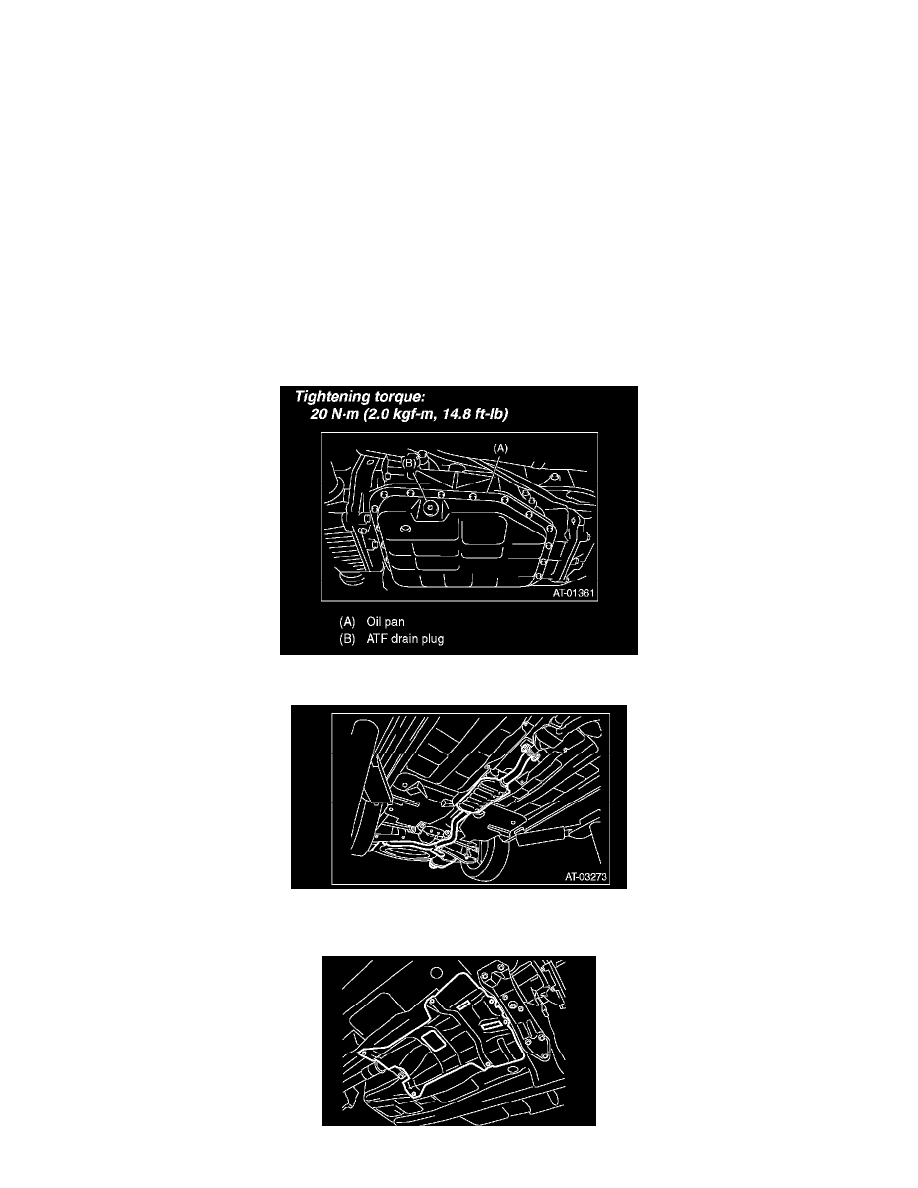

4. Tighten the ATF drain plug.
NOTE: Use a new gasket.
Tightening torque: 20 Nm (2.0 kgf-m, 14.8 ft. lbs.)
5. Remove the rear exhaust pipe and muffler.
6. Remove the front exhaust pipe.
7. Remove the heat shield cover.
