Forester F4-2.5L DOHC Turbo (2007)

  • Lighting and Horns
  • Trunk Lamp
  • Trunk Lamp Switch
  • Component Information
  • Testing and Inspection

Page 1
background image

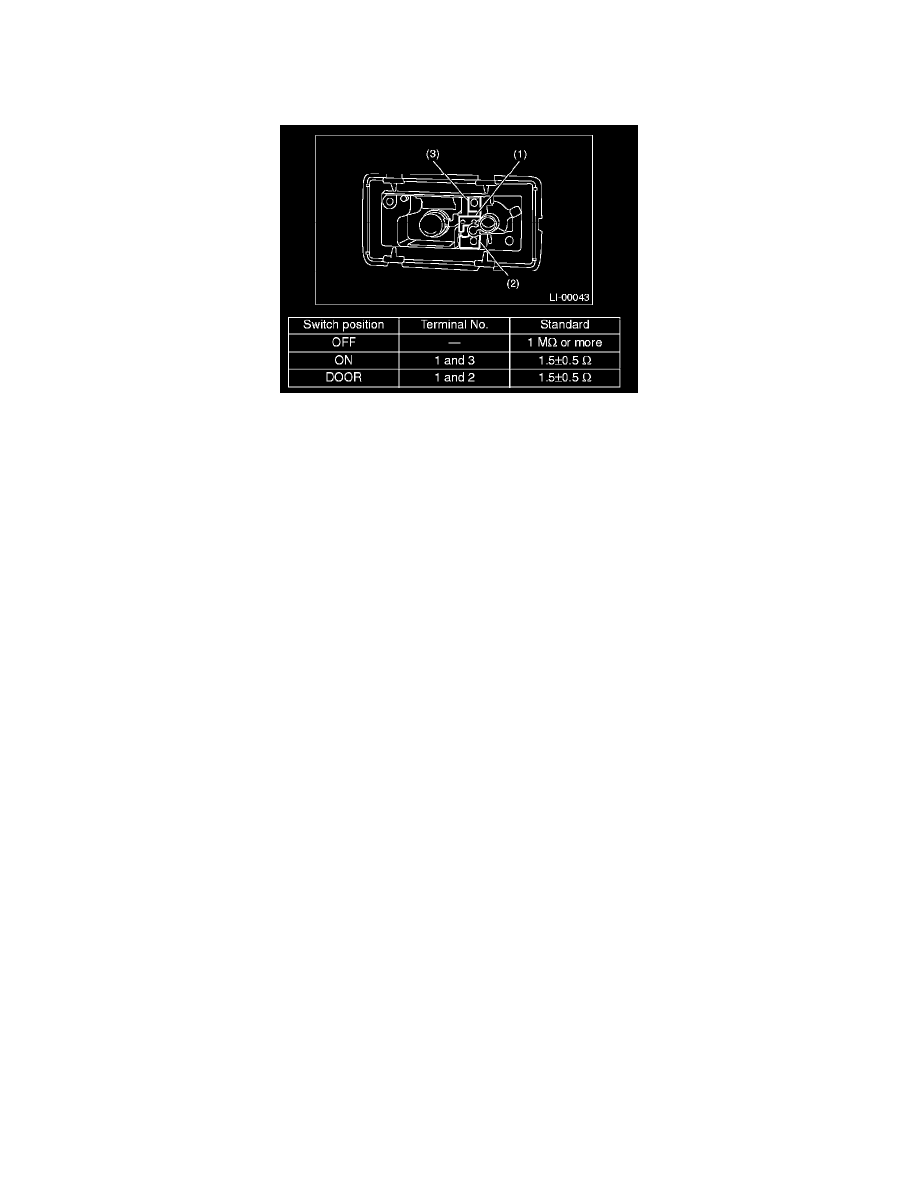

Trunk Lamp Switch: Testing and Inspection

INSPECTION

LUGGAGE ROOM LIGHT SWITCH

Measure the luggage room light switch resistance.
