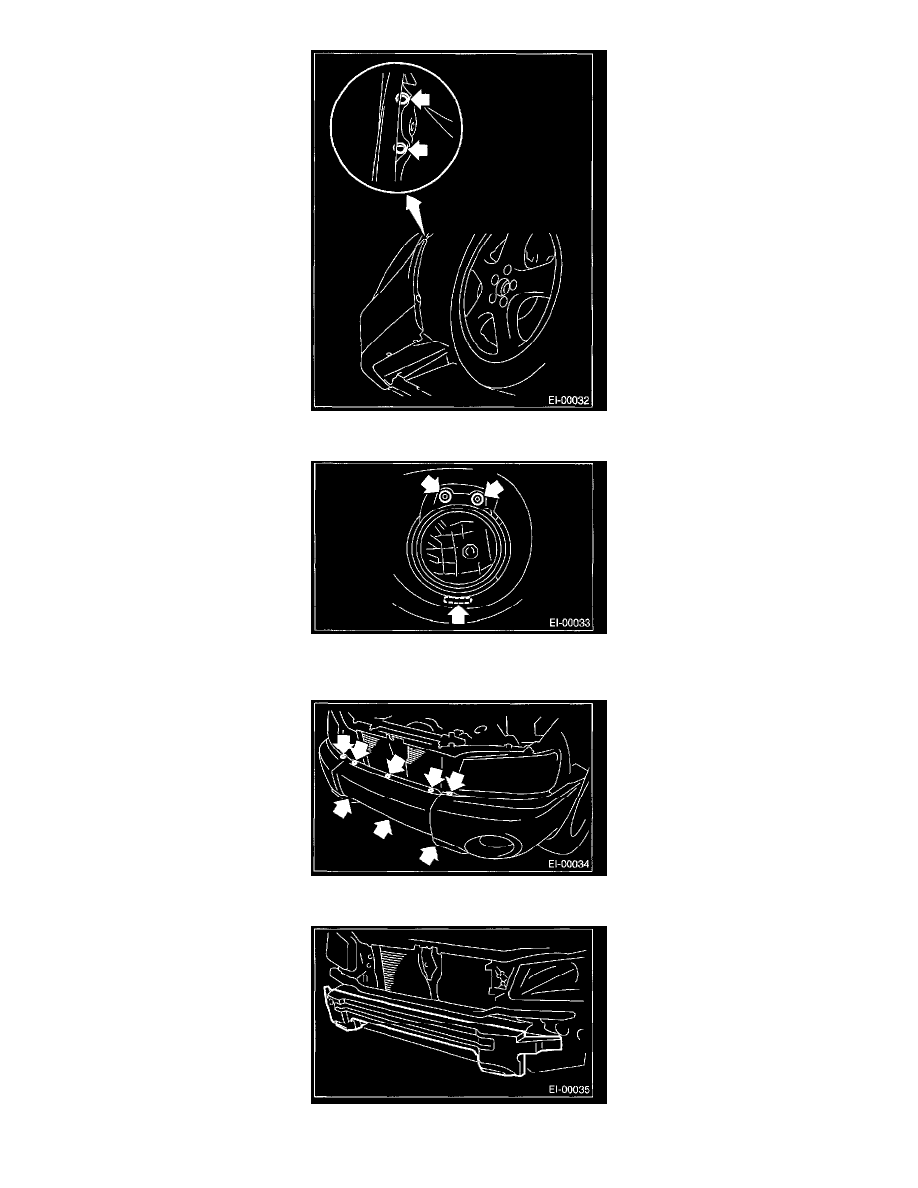

4. Turn over the mud guard, and disconnect the fog light connector before removing a bolt and clip which installed to under side of fog light hole.

5. Remove the front grille and front grille side.
6. Remove the eight clips, and pull out the bumper slightly.

7. Remove the E/A FORM from bumper beam. E/A FORM may easily break. Do not apply excessive force to it during removal.

8. Remove the bumper beam.
