Forester F4-2.5L SOHC (2004)
Door Locks: Service and Repair
Key Lock Cylinder
REPLACEMENT
FRONT DOOR
1. Remove the door trim.
2. Pull back the sealing cover.
3. Close the front door glass completely.

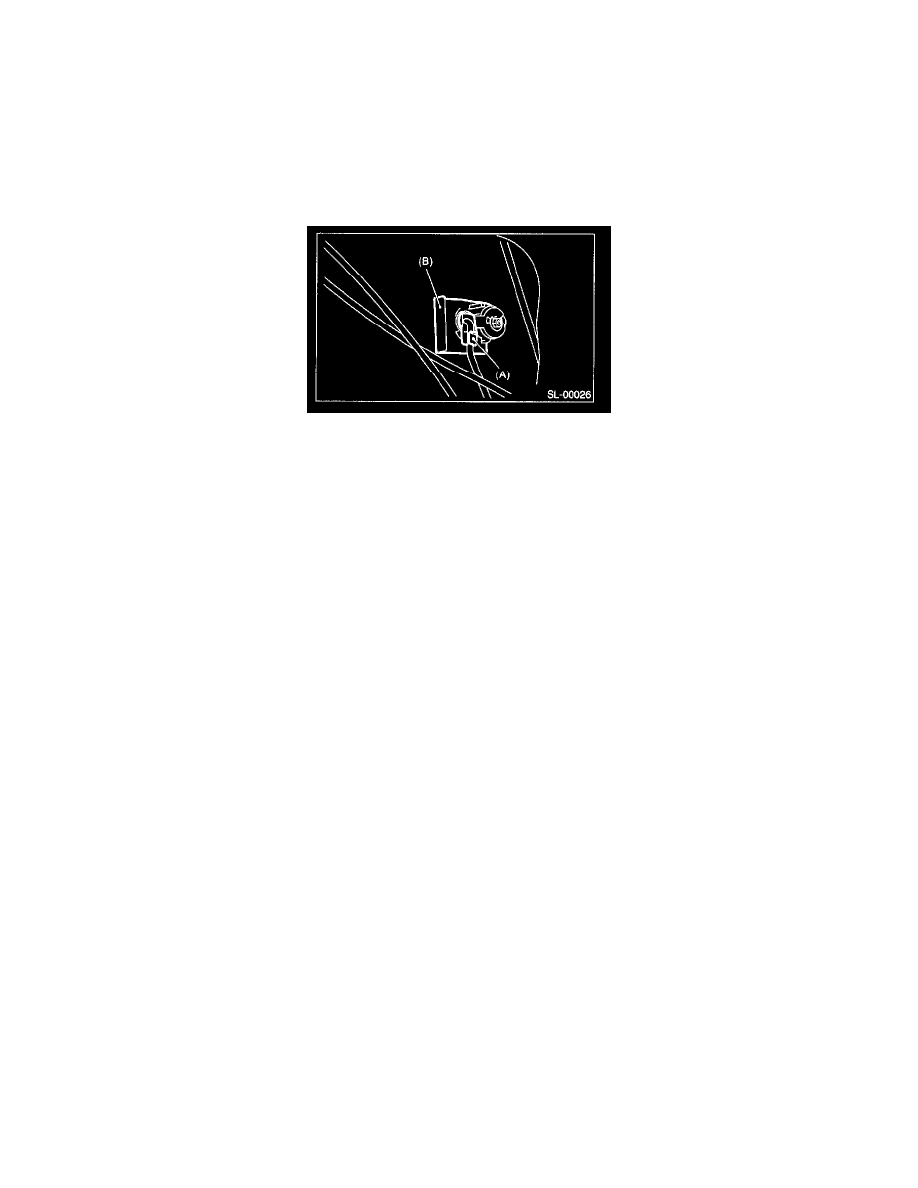

4. Remove the rod clamp (A). Remove the lock plate (B). Replace the key cylinder.
NOTE: Be sure to replace the lock plate (B) with a new one.
