Forester F4-2.5L SOHC (2004)
Splash Guard: Service and Repair

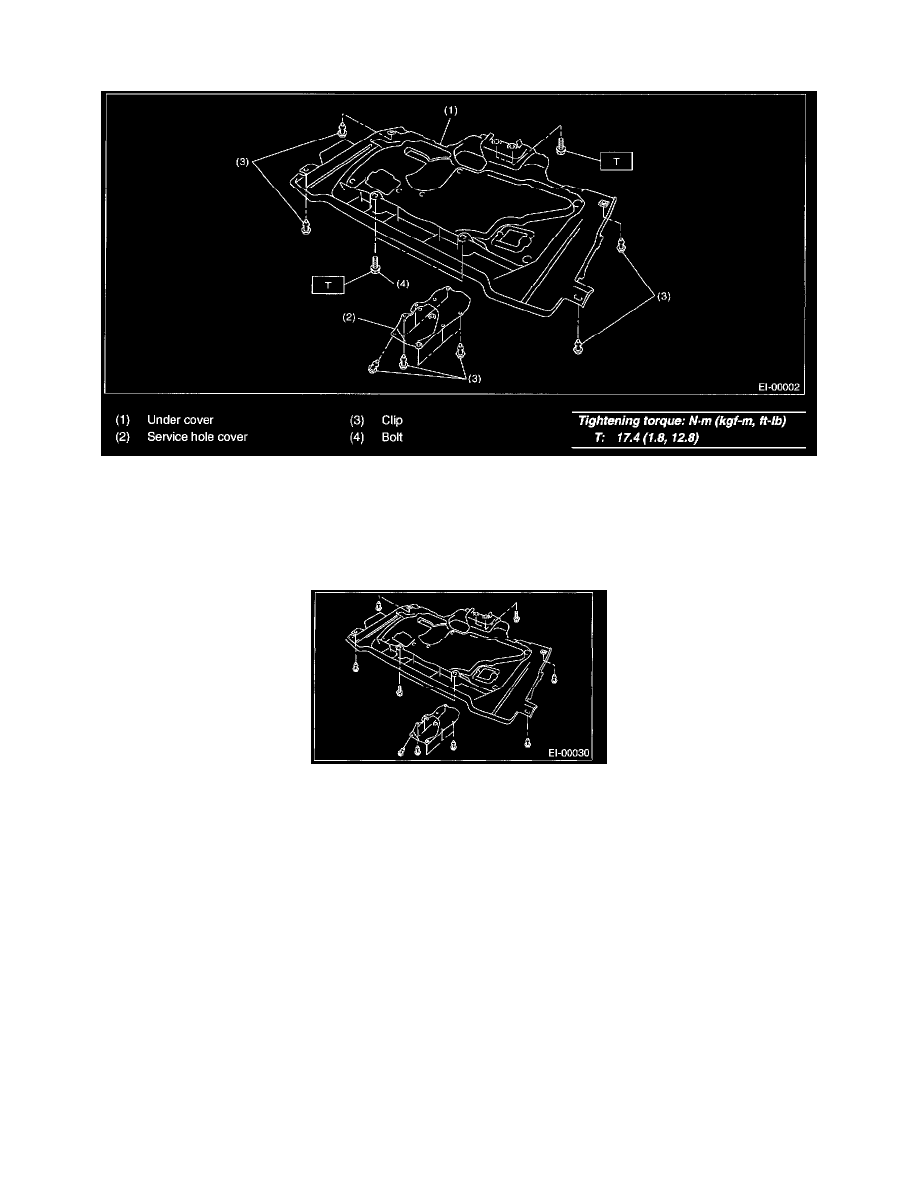

FRONT UNDER COVER
Under Cover
REMOVAL
1. Lift-up the vehicle.
2. Loosen the bolts, remove the clips, and then remove the under cover.
INSTALLATION
Install in the reverse order of removal.
Tightening torque: 14 N.m (1.42 kgf-m, 10.3 ft-lb)
