Forester F4-2.5L SOHC (2004)
1) Install in the reverse order of removal.
CAUTION:
^
If the cable clamp is damaged, replace it with a new one.
^
Never fail to cover the outer cable end with boot.
^
Be careful not to kink the accelerator cable.
^
Always use new clevis pins.
2) Adjust the clutch pedal.
3) Inspect the brake pedal after installation.

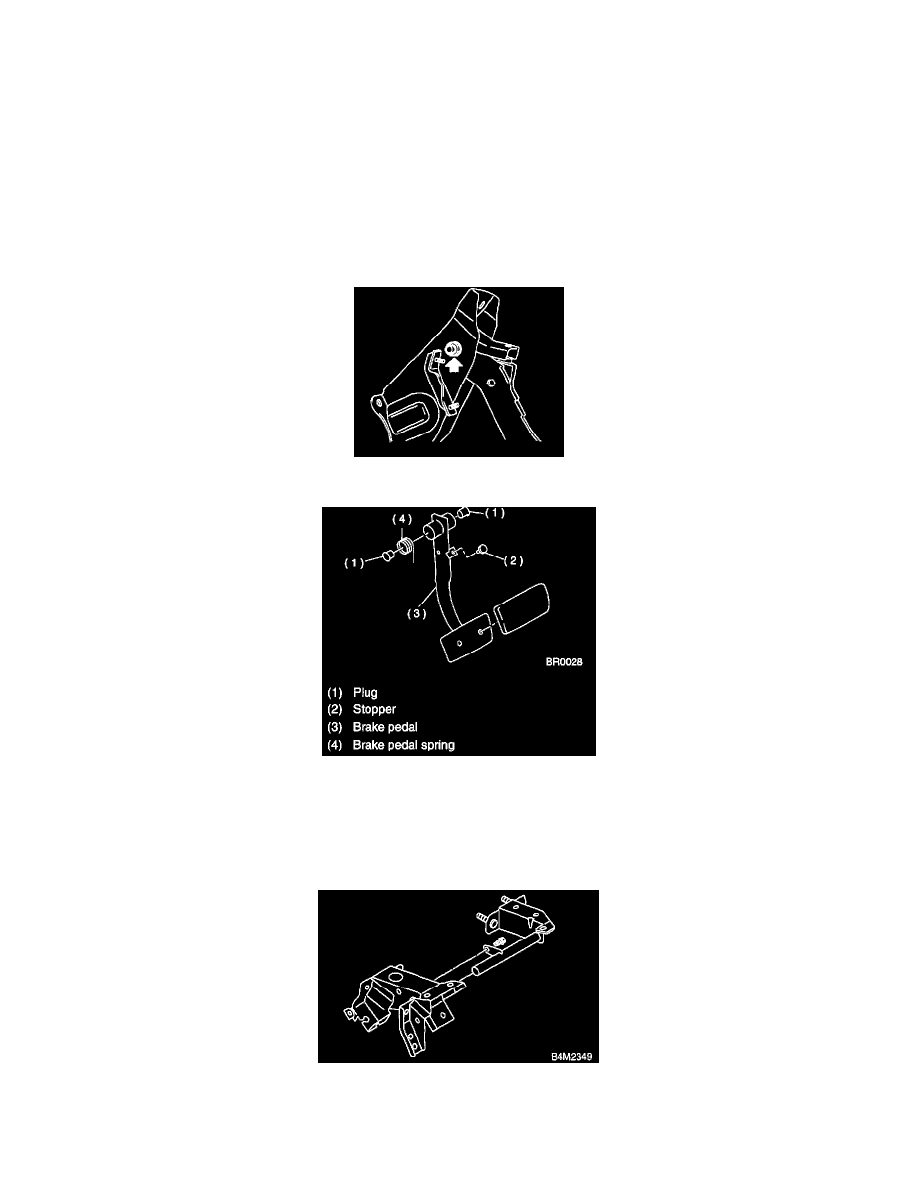

DISASSEMBLY
AT VEHICLES
1) Remove the brake switch.
2) Unbolt, and then remove the brake pedal.
3) Remove the bushing, spacer and spring.
4) Remove the brake pedal pad.
MT VEHICLES
1) Remove the brake switch.
2) Remove the clutch pedal.
3) Remove the clutch master cylinder bracket.
