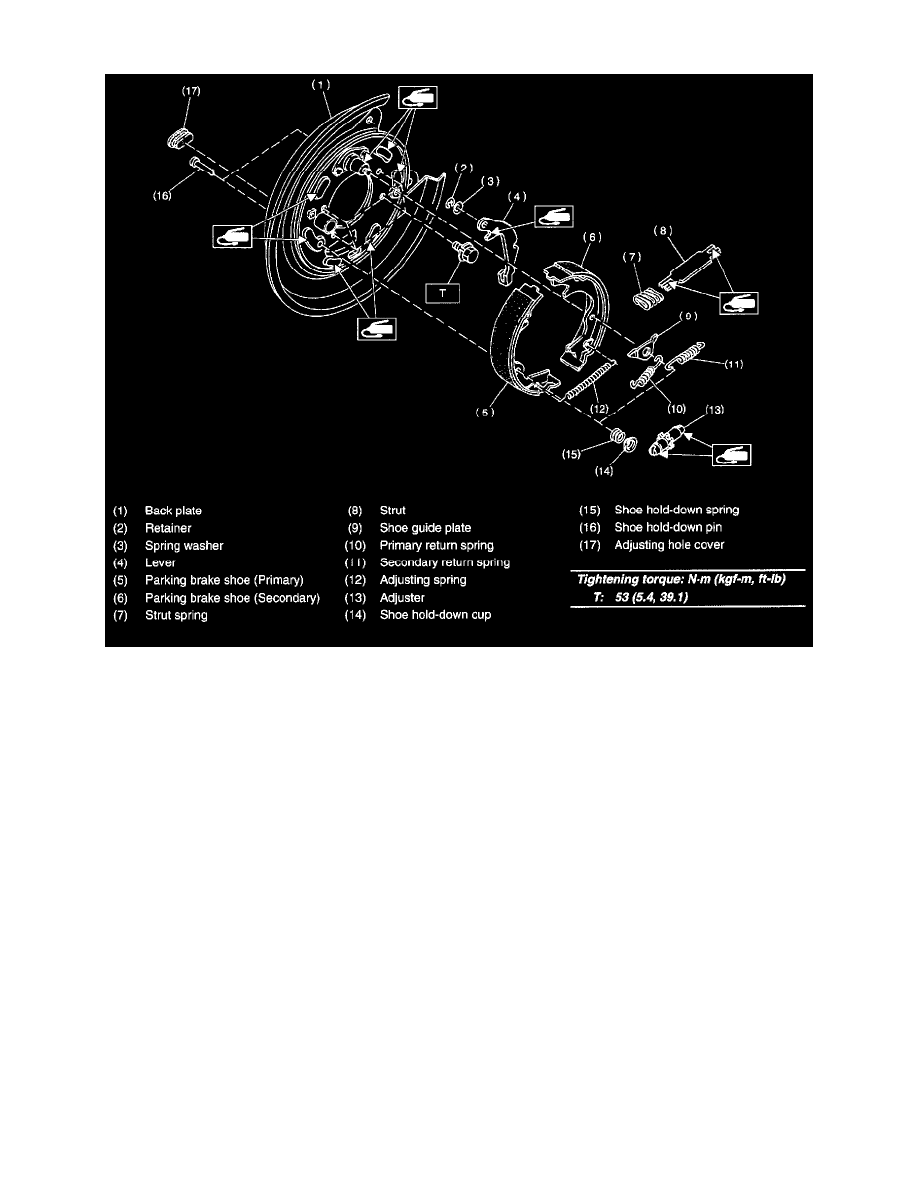

Parking Brake Shoe: Diagrams

PARKING BRAKE (REAR DISC BRAKE)

Brakes and Traction Control
Parking Brake System
Parking Brake Shoe / Specifications
Page 3590
