Forester F4-2.5L SOHC (2004)

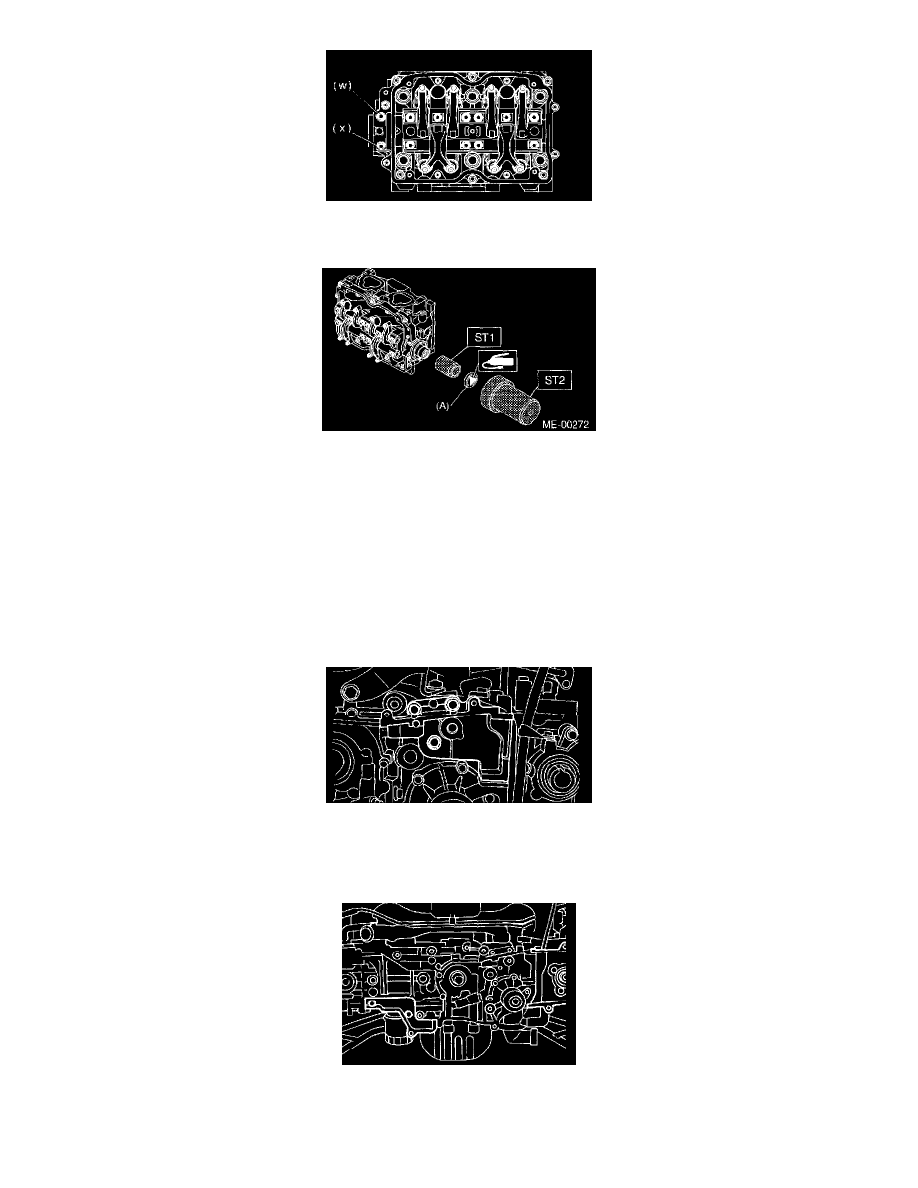

g. Tighten the bolts (w) through (x) in alphabetical sequence.
Tightening torque: 10 Nm (1.0 kgf-m, 7.2 ft. lbs.)
3. Apply a coat of grease to oil seal lips, and then install the oil seal (A) on camshaft using ST1 and ST2.
NOTE: Use a new oil seal.
ST1 499597000OIL SEAL GUIDE
ST2 499587500OIL SEAL INSTALLER
4. Install the plug using ST.
ST 499587700 CAMSHAFT OIL SEAL INSTALLER
5. Adjust the valve clearance.
6. Install the rocker cover and connect PCV hose.
7. Install the oil level gauge guide. (LH side only)
8. Install the camshaft position sensor support. (LH side only)
9. Install the tensioner bracket.
Tightening torque: 25 Nm (2.5 kgf-m, 18.1 ft. lbs.)
10. Install the belt cover No. 2 (RH).
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)
11. Install the belt cover No. 2 (LH).
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)
12. Install the crankshaft sprocket.
13. Install the camshaft sprocket.
