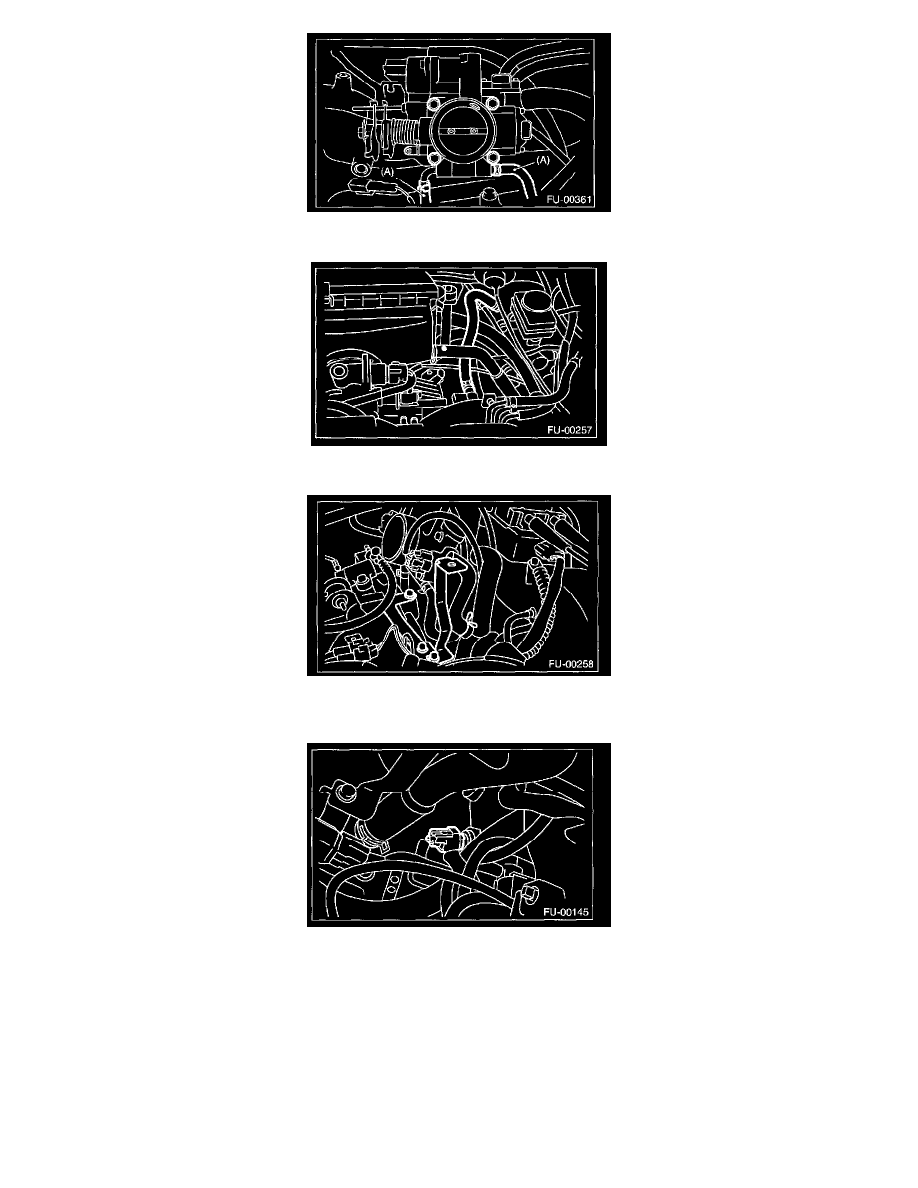

10. Disconnect the engine coolant hose (A) from the throttle body.

11. Disconnect the brake booster hose.

12. Remove the air cleaner case stay RH and engine harness bracket, and disconnect the engine harness connectors from the bulkhead harness

connectors.

13. Disconnect the connectors from the engine coolant temperature sensor.
