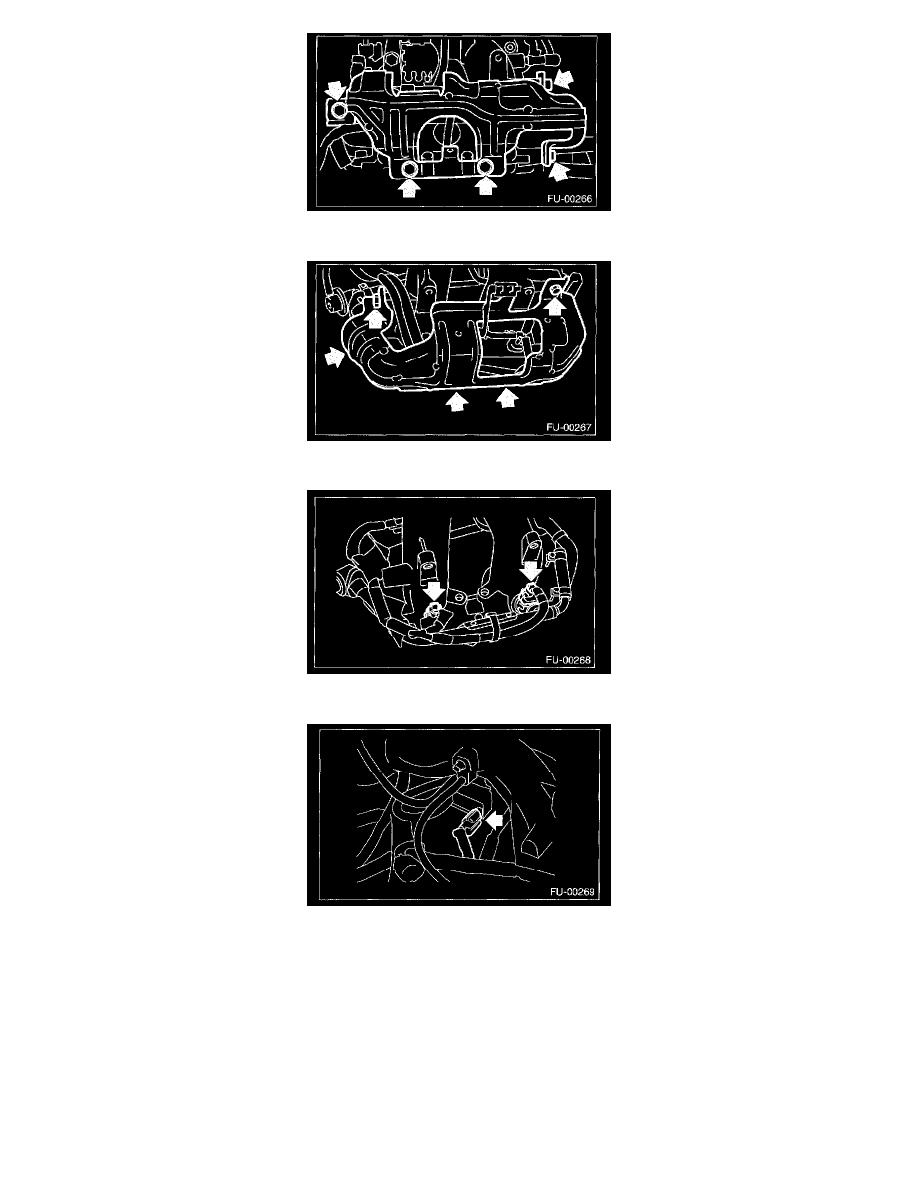

7. Remove the fuel pipe protector LH.

8. Remove the fuel pipe protector RH.

9. Disconnect the connectors from the fuel injectors.

10. Disconnect the connector from the purge control solenoid valve.
11. Disconnect the air by-pass hose from the purge control solenoid valve.
