Forester F4-2.5L SOHC (2004)

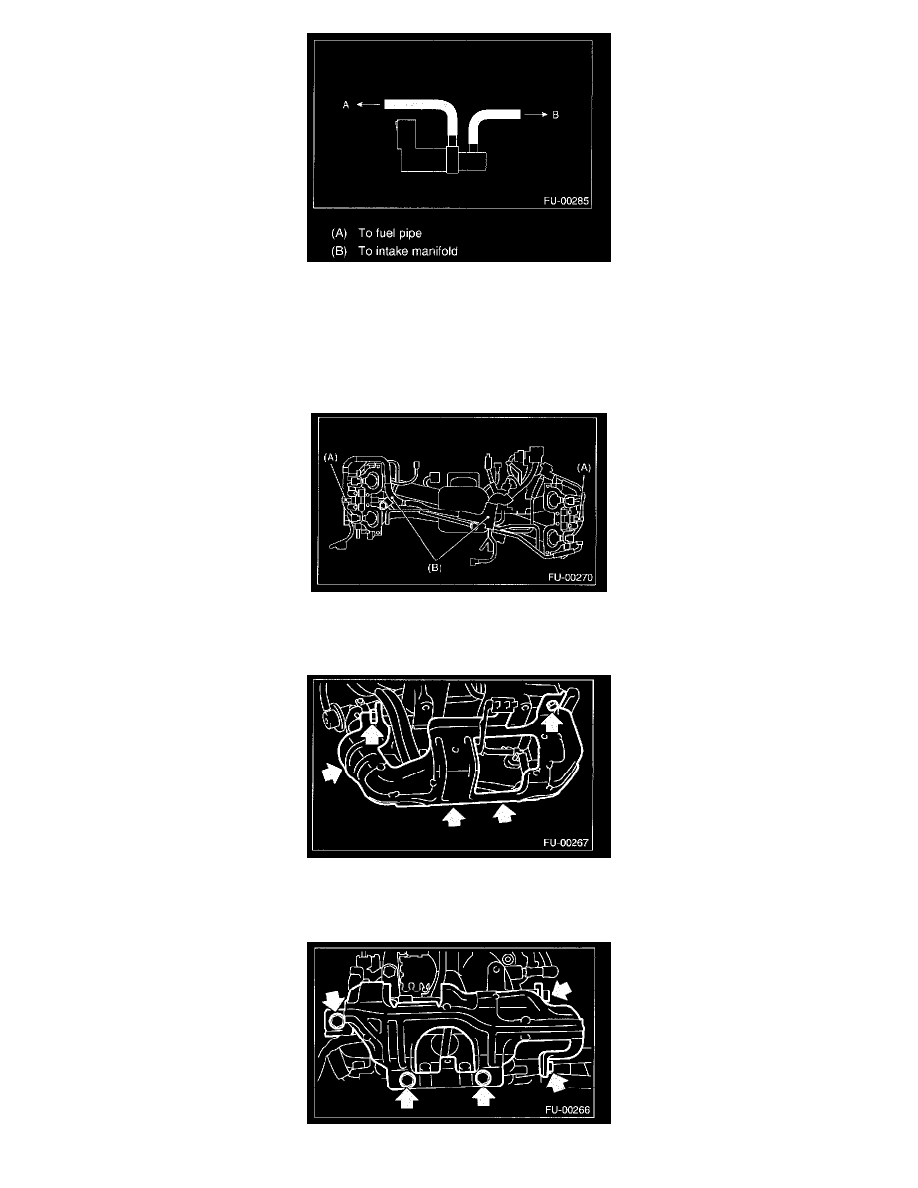

CAUTION: Connect the evaporation hose as shown in the figure.
13. Install the engine harness onto the intake manifold.
Tightening torque: 16 N.m (1.6 kgf.m, 11.8 ft.lb)
14. Connect the connectors to the fuel injectors and purge control solenoid valve.
15. Hold the engine harness by harness band (A) and harness bracket (B).
NOTE: Do not use harness band on harnesses where they are supposed to be protected by the fuel pipe protector.
16. Install the fuel pipe protector RH.
Tightening torque: 19 N.m (1.9 kgf.m, 13.7 ft.lb)
