Forester F4-2.5L SOHC (2004)
two connectors are connected as a unit, the poles which have the same number are joined.
-
Electrical wiring harness:
The connectors are numbered along with the number of poles, external colors, and mating connections in accompanying list.
-

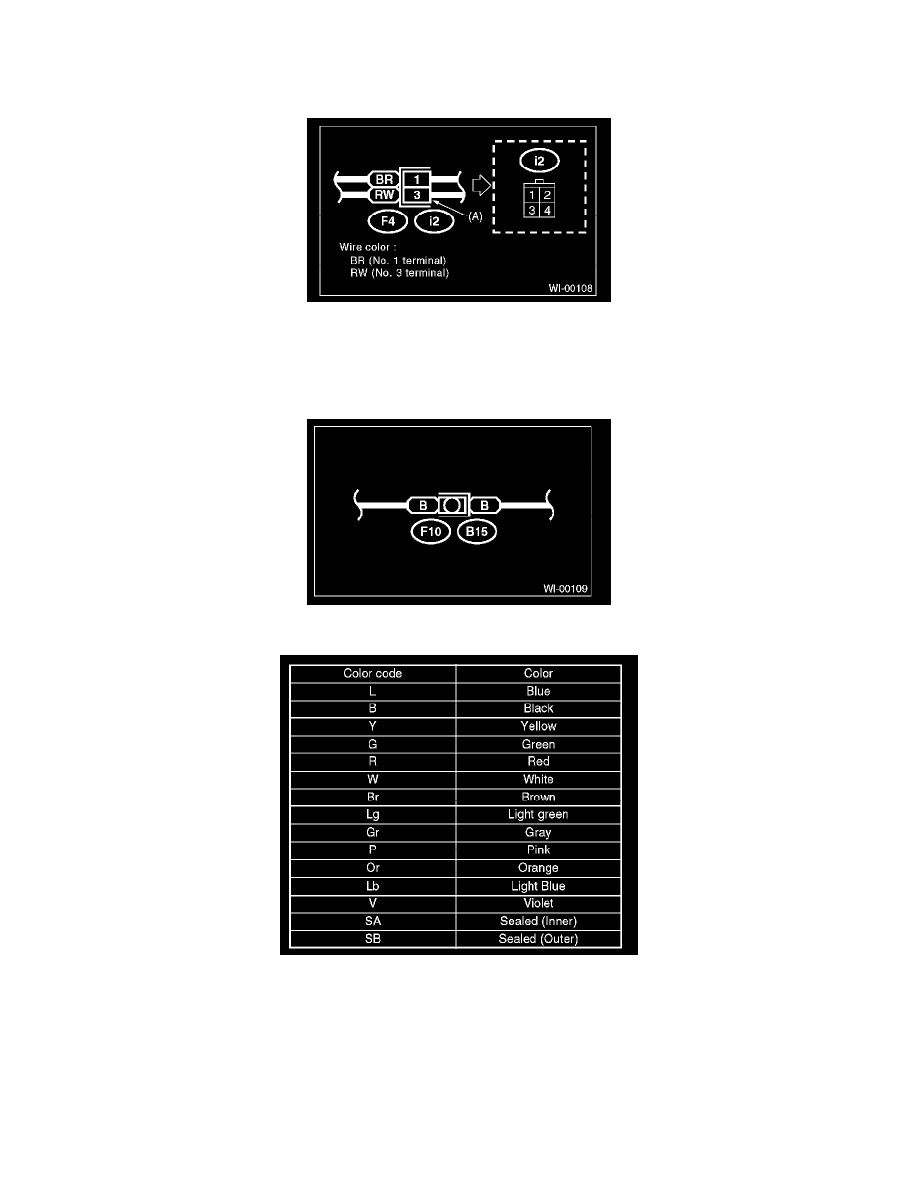

The sketch of each connector in the wiring diagram usually shows (A) side of the connector. The relationship between wire color, terminal
number and connector is described in figure.
NOTE: A wire which runs in one direction from a connector terminal sometimes may have a different color from that which runs in the other
direction from that terminal.
-
In wiring diagram, connectors which have no terminal number refer to one-pole types. Sketches of these connectors are omitted intentionally.
