Forester F4-2.5L SOHC (2004)
Tail Lamp Relay: Testing and Inspection
INSPECTION

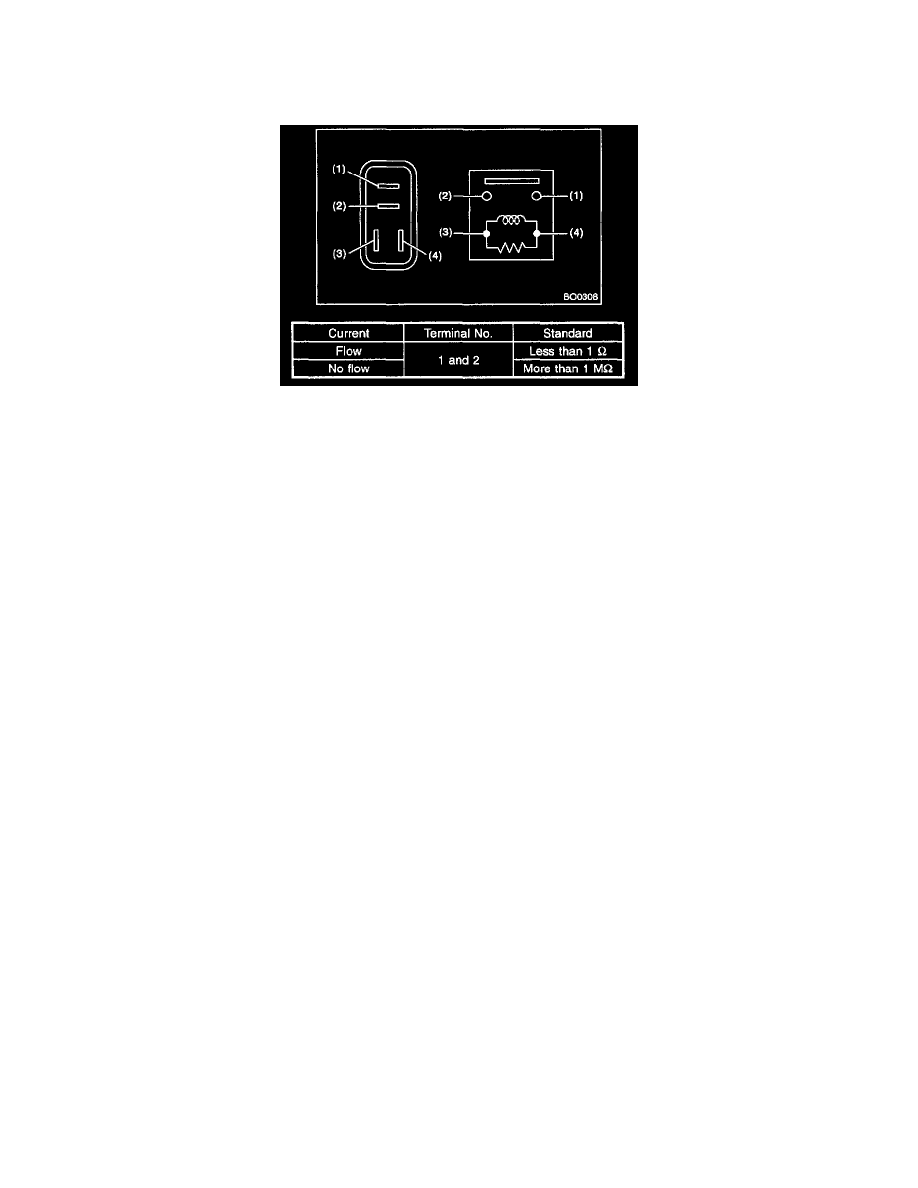

TAIL AND ILLUMINATION RELAY
Measure the tail and illumination relay resistance between terminals when connecting terminal No. 4 to battery positive terminal and terminal No. 3 to
battery ground terminal.
