Refueling Vapor Recovery System > < Leak Detection Solenoid, Evaporative System|Locations|Page 2157
Page 2
background image

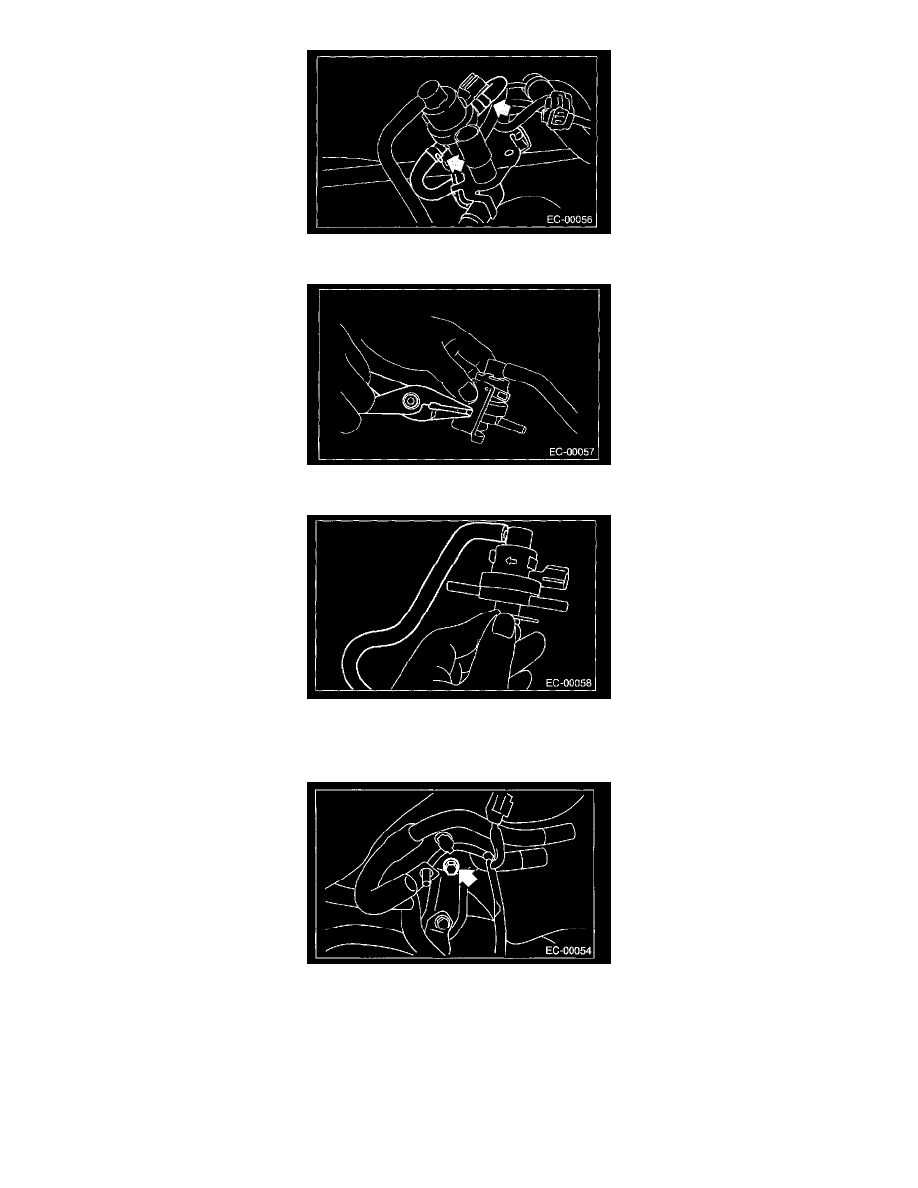

9. Remove the pressure control solenoid valve with bracket.

10. Remove the pressure control solenoid valve from bracket.

11. Disconnect the vacuum hose from pressure control solenoid valve.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 17.6 N.m (1.8 kgf.m, 13.0 ft.lb)
