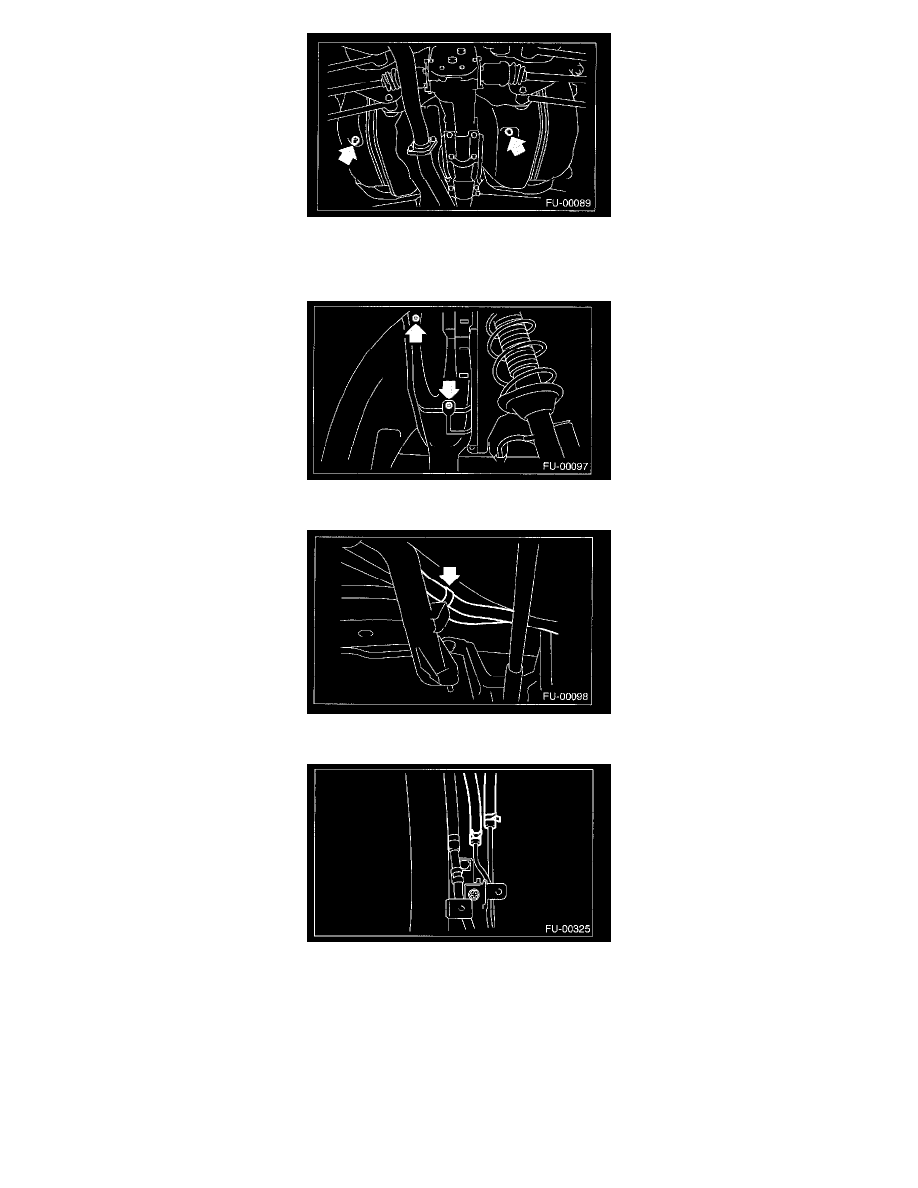

9. Tighten the fuel drain plug.

Tightening torque: 26 N.m (2.65 kgf.m, 19.2 ft.lb)

10. Remove the fuel filler pipe protector.

11. Separate the evaporation hoses from the clip of fuel filler pipe.

12. Disconnect the evaporation hoses from the pipes.
