Forester F4-2.5L SOHC (2004)

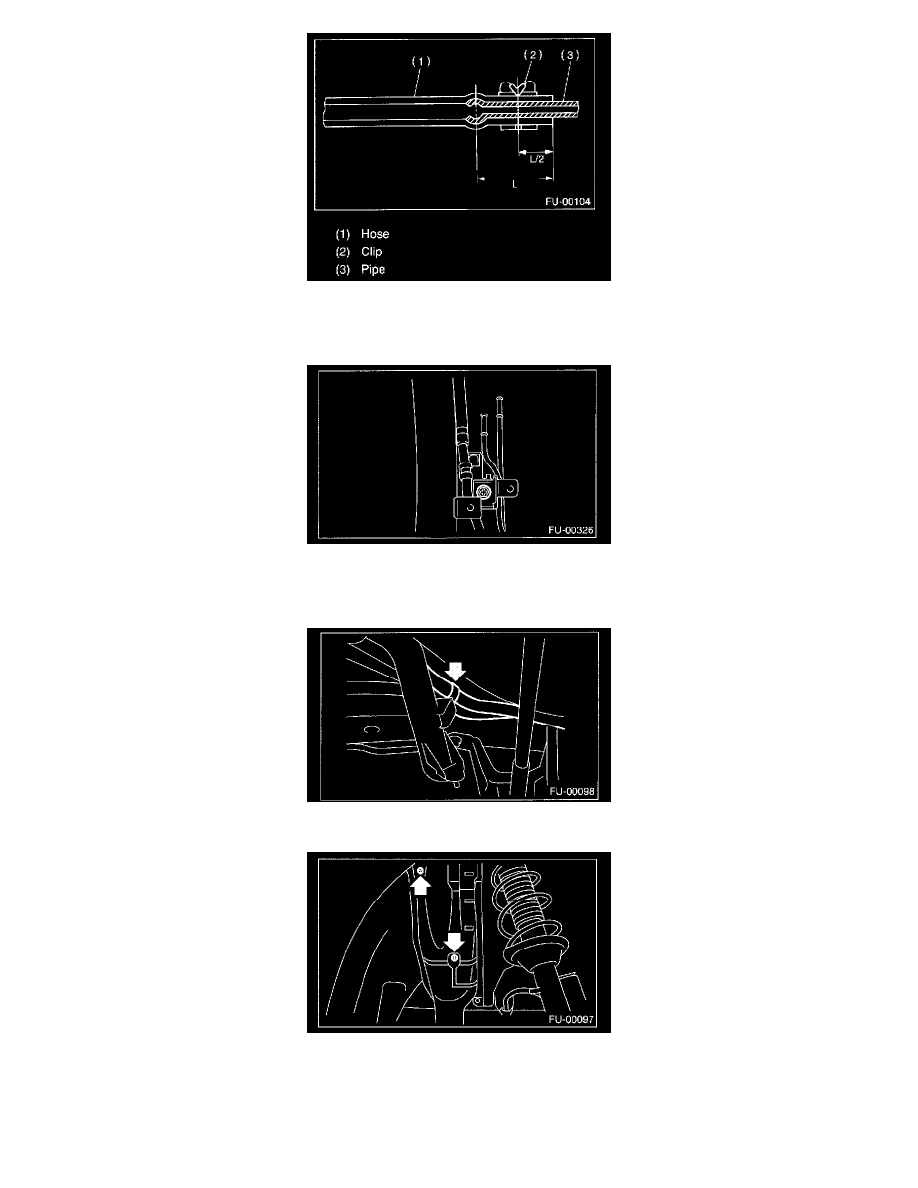

7. Insert the evaporation hose approximately 25 to 30 mm (0.98 to 1.18 in) into the lower end of evaporation pipe and hold the clip.
L = 27.5 ± 2.5 mm (1.083 ± 0.098 in)
8. Tighten the bolt which holds the fuel filler pipe bracket on the body.
Tightening torque: 7.5 N.m (0.75 kgf.m, 5.4 ft.lb)
9. Secure the evaporation hose to clip of fuel filler pipe.
10. Install the fuel filler pipe protector.
