Forester F4-2.5L SOHC (2004)
17)

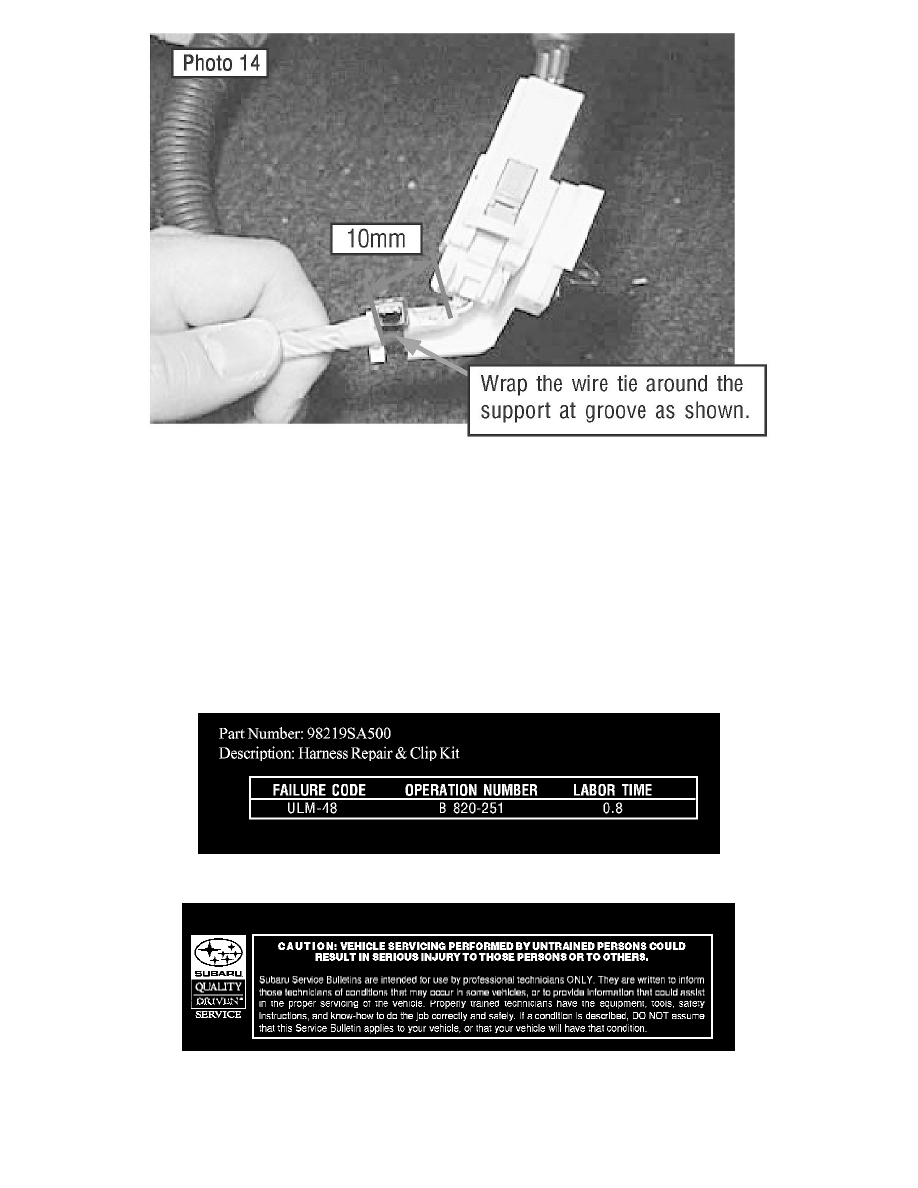

Re-connect airbag connectors and wrap wire tie around harness as shown in Photo 14.
18)
Reinstall connector and support assembly into original position in bracket under seat and reconnect all connectors that were disconnected. Confirm
that support and wiring do not contact carpeted portion of floor and that harness and connector do not move in support. If any of these conditions
exist, remove wire tie and repeat step 16.
19)
Repeat steps 4-18 to the connector on the passenger's side of the vehicle. Perform procedure on both driver's and passenger's sides.
20)
Reconnect negative terminal of battery and clear any SRS codes. Start vehicle and insure that SRS light goes off after approximately 6 seconds. If
it does not, retrieve code and diagnose according to Subaru Service Manual.
21)
Be sure that all repair debris is removed, and work area is clean.
22)
Check that radio stations are correct and set clock to correct time.
CLAIM INFORMATION
Disclaimer
