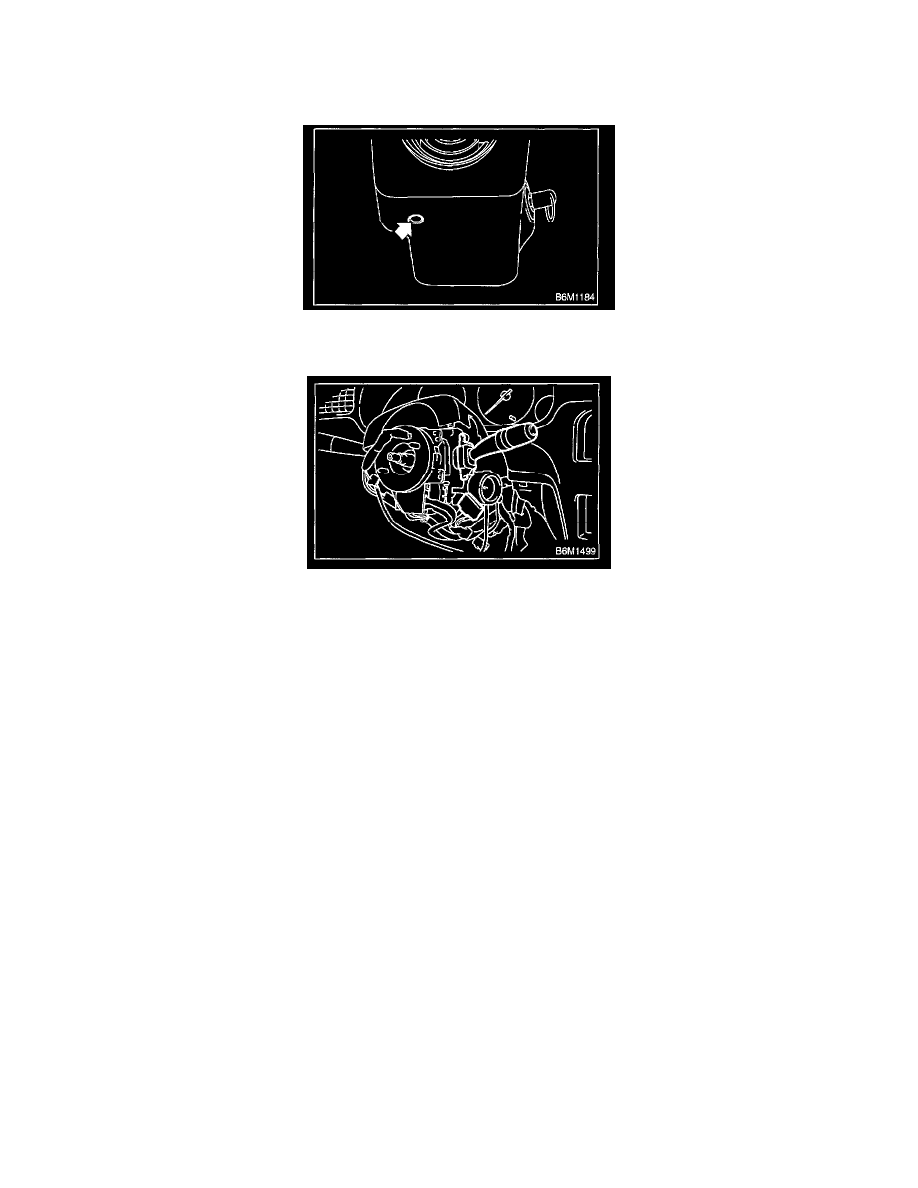

Wiper Switch: Service and Repair

Combination Switch (Wiper)

REMOVAL

1. Loosen the screw to remove the steering column
2. Disconnect the connectors from combination switches.

3. Loosen the screw to remove combination switch.

INSTALLATION

Install in the reverse order of removal.
