CAUTION: Be careful not to scratch the rack surface as oil leaks may result.

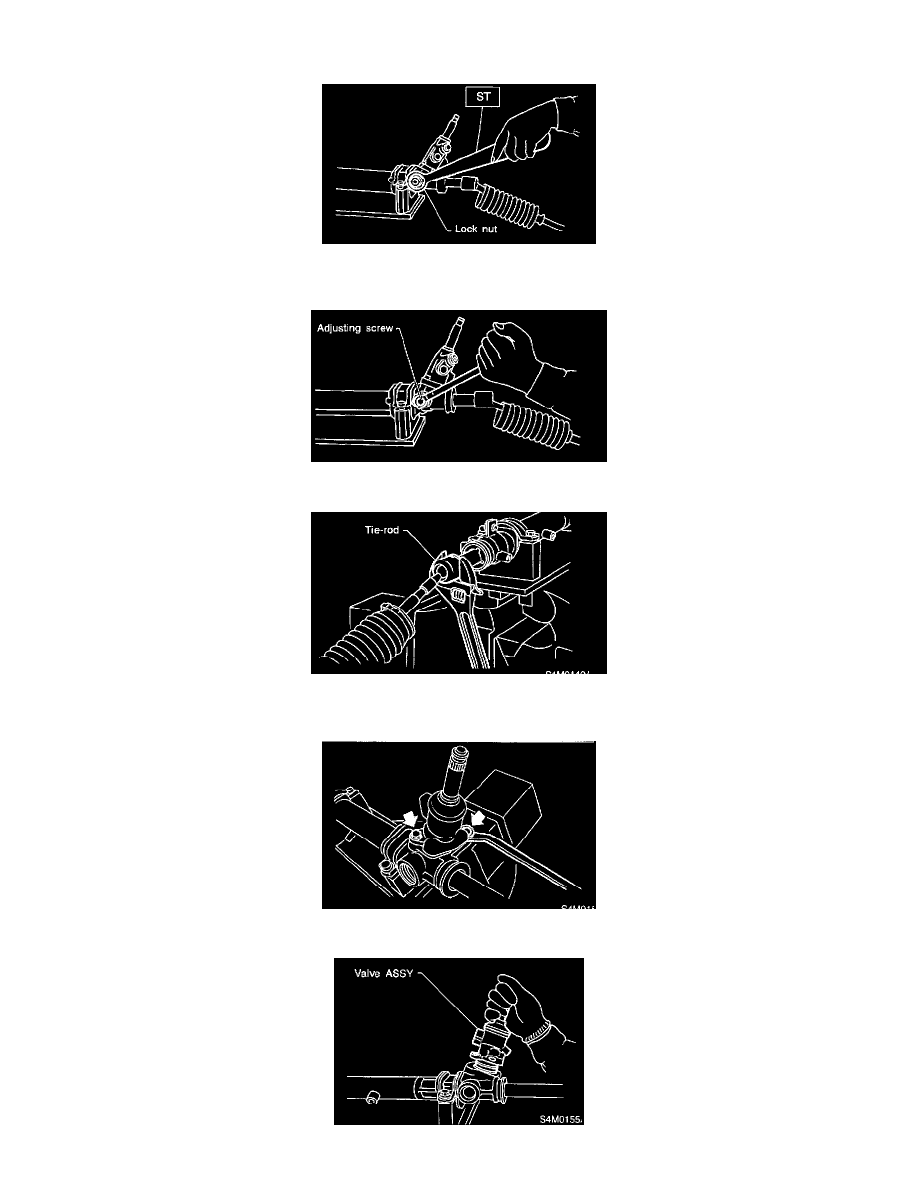

7) Using the ST, loosen the lock nut.
ST 926230000 SPANNER

8) Tighten the adjusting screw until it no longer tightens.

9) Using a wrench [32 mm (1.26 inch) width across flats] or adjustable wrench, remove the tie-rod.

10) Loosen the adjusting screw, and then remove the spring and sleeve.

11) Remove the two bolts securing valve assembly.
