Page 10
background image

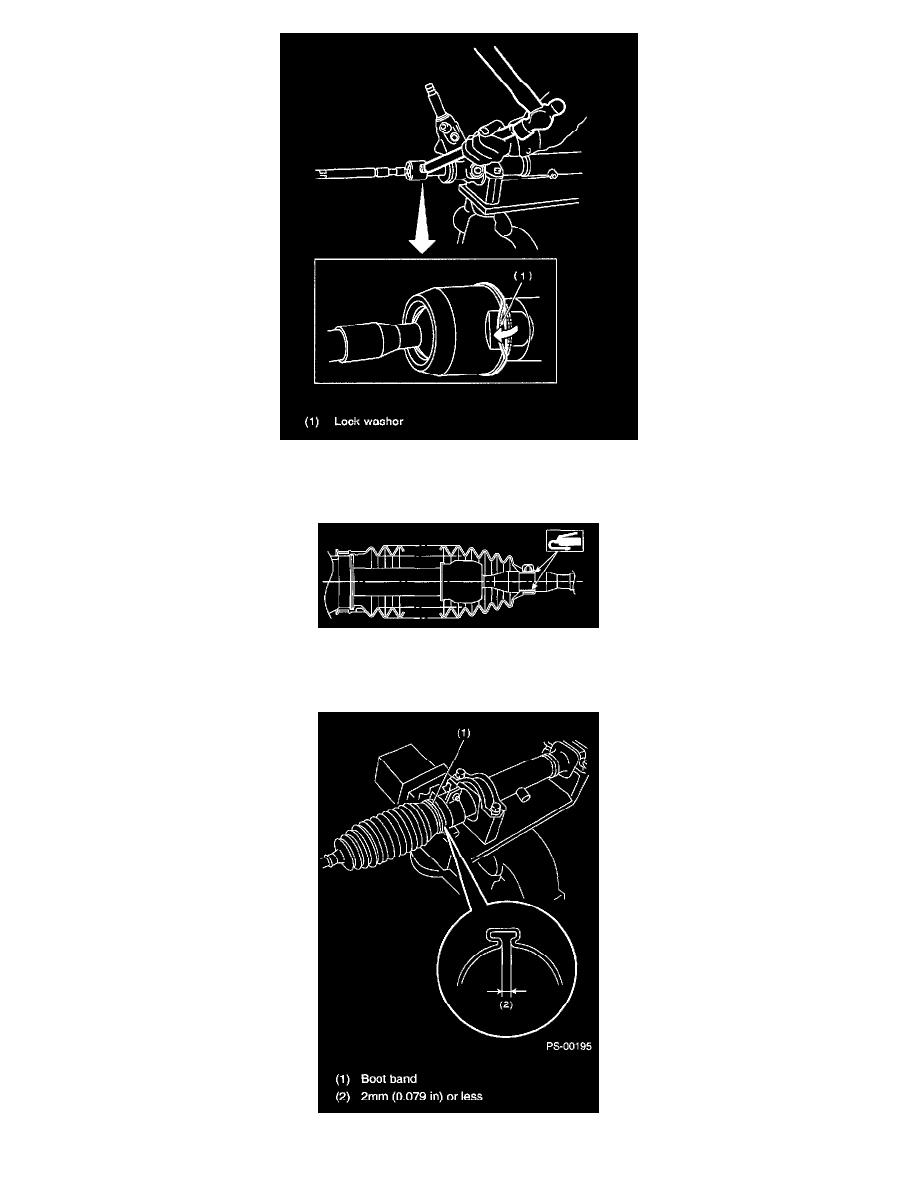

25) Bend the lock washer.

CAUTION: Be careful not to scratch the rack when bending lock washer.

26) Apply a coat of grease to the tie-rod groove, and then install the boot to housing.

NOTE: Make sure that the boot is installed without unusual inflation or deflation.

27) Install a new boot band. Using band clamp pliers, caulk the boot band to make clearance of caulking part 2 mm (0.079 inch) or less.
