4) If the rim runout exceeds specifications, remove the tire from rim and check runout while attaching dial gauge to positions shown in the figure.
5) If measured runout still exceeds specifications, replace the wheel.

Aluminum Wheel

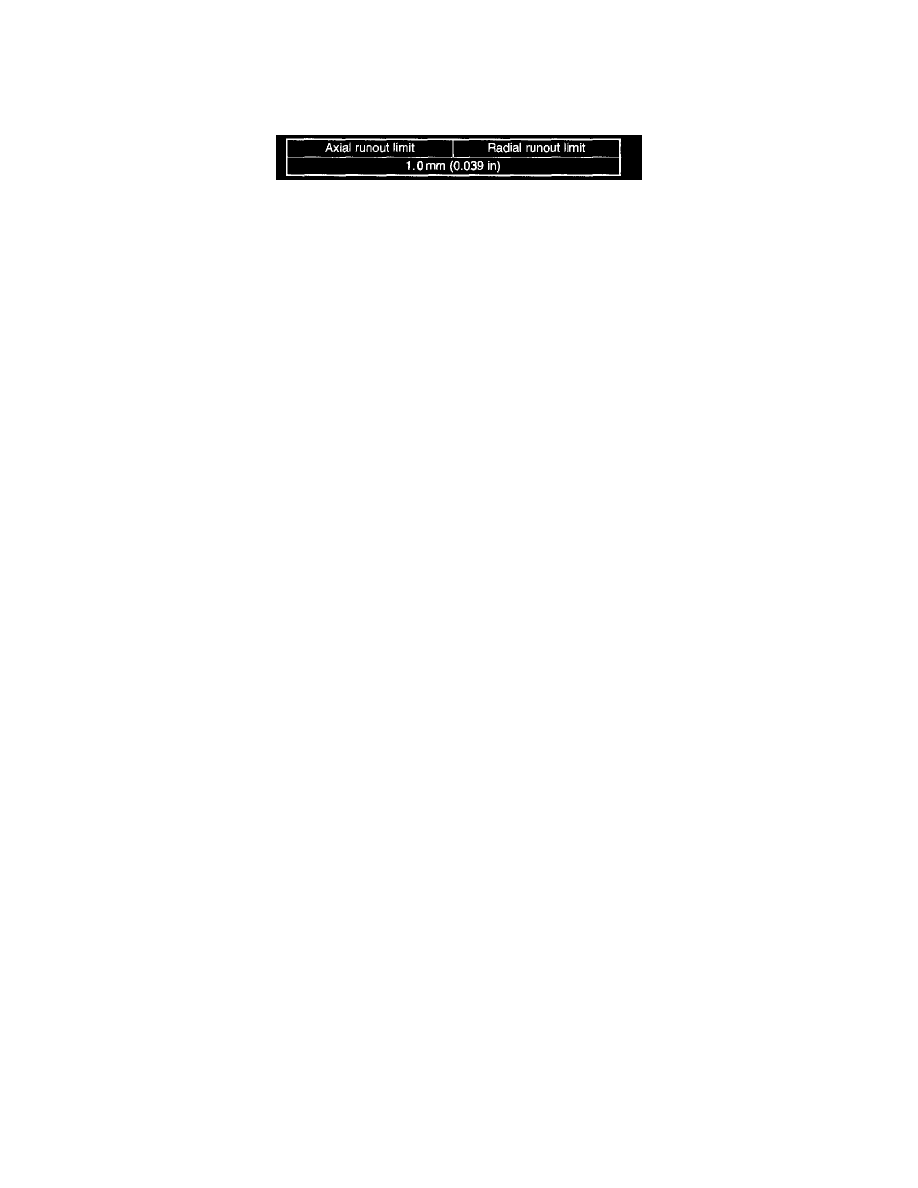

Rim runout:
