Page 2

background image

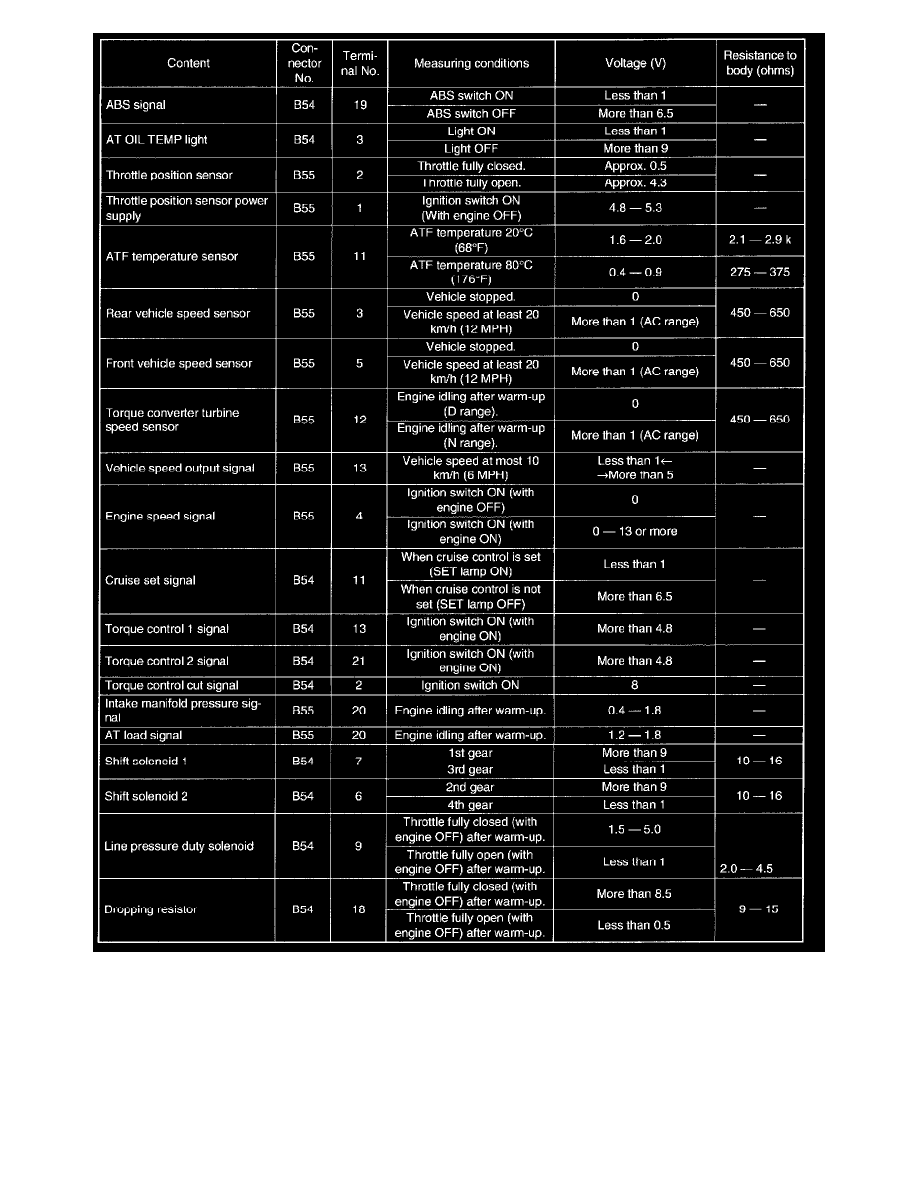

Transmission Control Module (TCM) I/O Signal Part 2

Transmission and Drivetrain
Automatic Transmission/Transaxle
Relays and Modules - A/T / Control Module, A/T / Locations
Page 2788
