Forester F4-2.5L SOHC (2004)

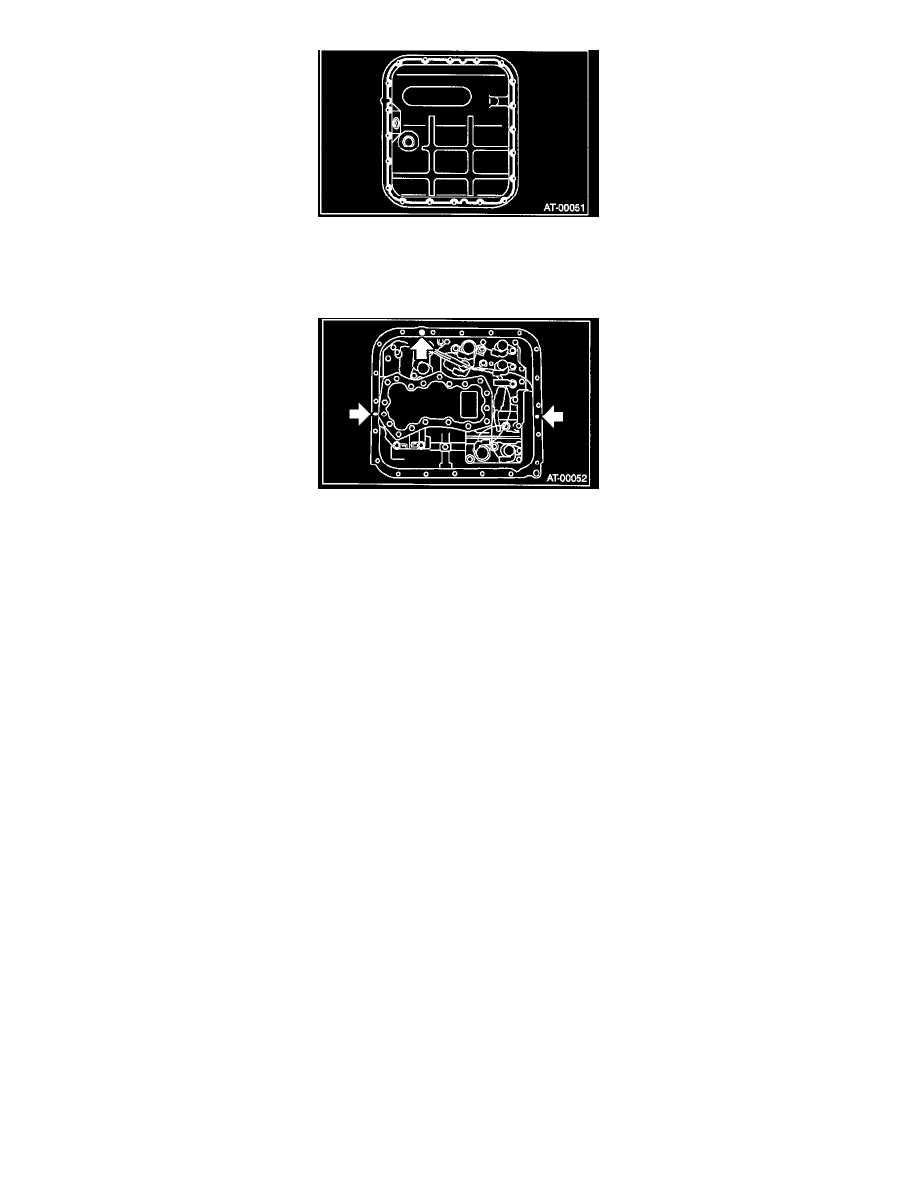

5) Apply liquid gasket fully to three holes other than screw holes on transmission case.
Liquid gasket:
THREE BOND 1217B (Part No. K0877YA020)

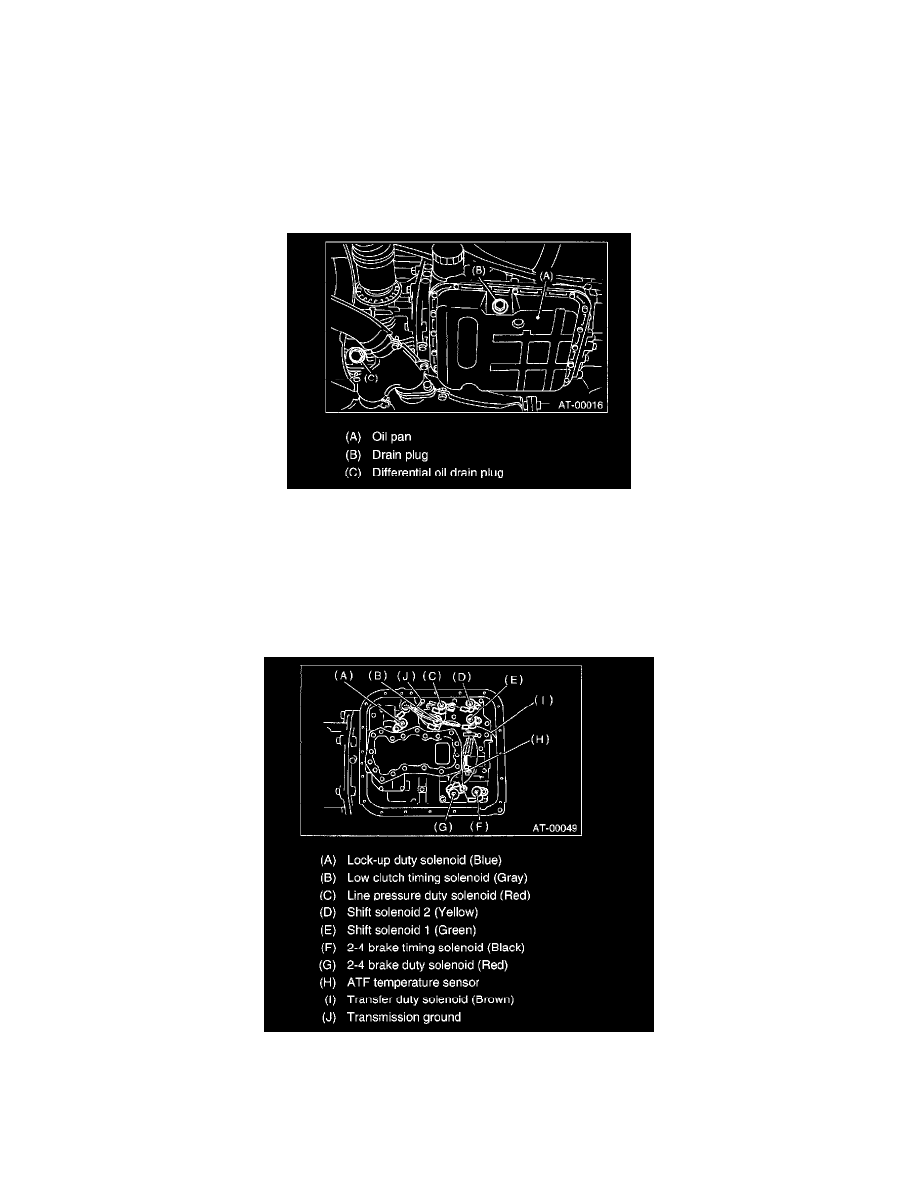

6) Install the oil pan with tightening bolts evenly.
Tightening torque:
5 N.m (0.5 kgf-m, 3.6 ft-lb)
7) Pour ATF into the ATF charge pipe.
Recommended fluid:
Dexron Ill type automatic transmission fluid
Fluid capacity:
Fill the same amount of fluid drained from drain plug hole.
8) Bleed the air from control valve.
9) Check the level of ATF.
10) Perform the advance operation of learning control.
Turbo-model
(1) Warm up the automatic transmission. (Raise the ATF temperature to 60 - 90°C (140 - 194°F).)
(2) Set the select lever to "P" range and apply parking brake, then lift-up the vehicle.
(3) Connect the SUBARU Select Monitor to vehicle.
(4) Using SUBARU Select Monitor, check that the DTC is not output.
(5) Using SUBARU Select Monitor, select the {2. Each System Check}~{Transmission Control System}~{Current Data Display & Save}~{12.
Data Display}, and then indicate ATF Temp. data with using the scroll key.
(6) Using SUBARU Select Monitor, verify the ATF temperature is within a range of 60- 90°C (140 - 1 940 F). During operation of the advance
operation of learning control, leave the indication of SUBARU Select Monitor display as it is.
(7) Take all electrical load (headlight, air conditioner, seat heater, rear defogger, etc.) off the vehicle.
(8) With pressing shift lock release button, set the select lever to "R" range.
