Forester F4-2.5L SOHC (2004)

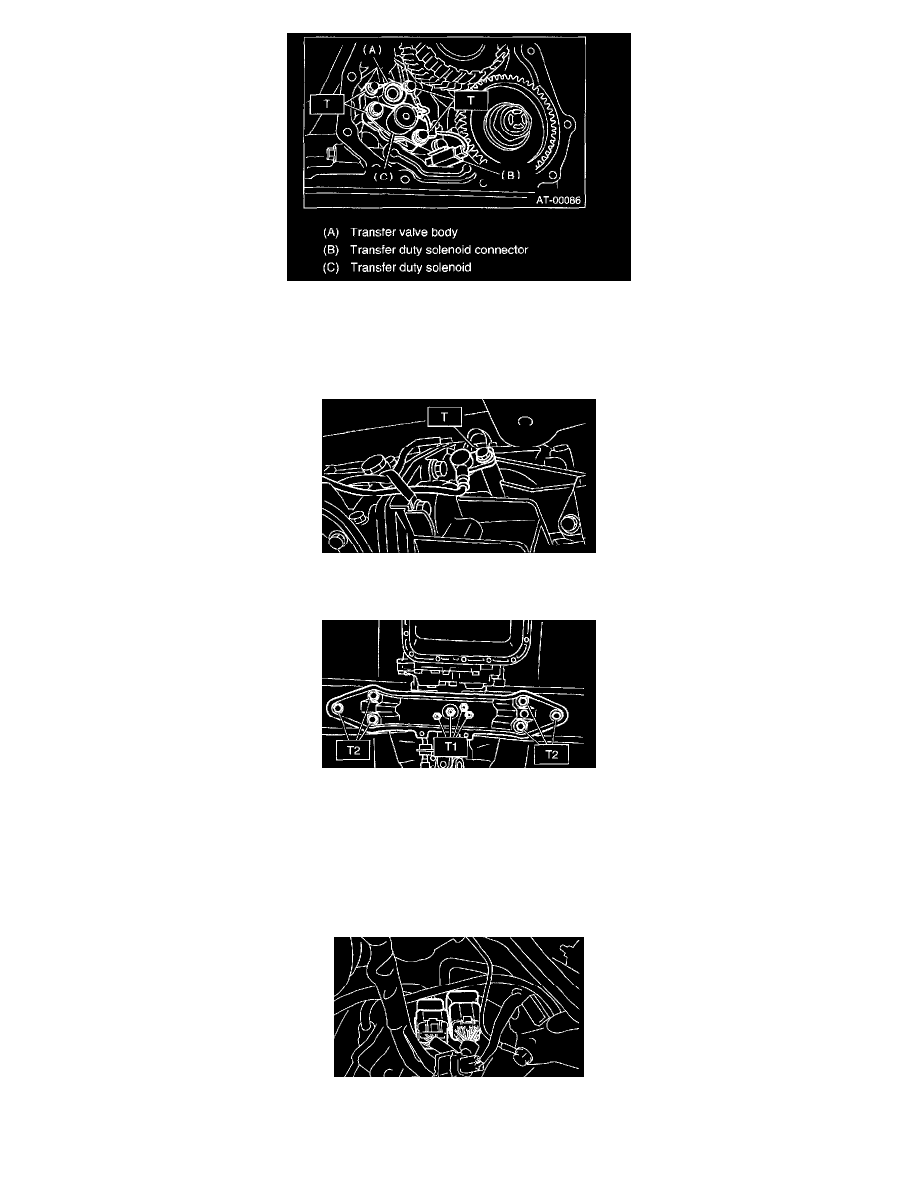

2. Connect the transfer duty solenoid connector.
2. Install a new gasket and the extension case to transmission case.
1. Tighten eleven bolts.
Tightening torque: 25 Nm (2.5 kgf-m, 18.1 ft. lbs.)
2. Adjust the select cable.
3. Install the rear vehicle speed sensor.
Tightening torque: T: 7 Nm (0.7 kgf-m, 5.1 ft. lbs.)
4. Install the transmission rear crossmember.
1. Tighten the bolts.
Tightening torque:
T1: 35 Nm (3.6 kgf-m, 26 ft. lbs.)
T2: 70 Nm (7.1 kgf-m, 51 ft. lbs.)
2. Remove the transmission jack.
5. Install the propeller shaft.
6. Install the front, center rear exhaust pipe and muffler.
7. Connect the transmission harness connector.
