Forester F4-2.5L SOHC (2004)
Clutch Pedal Assembly: Description and Operation
Hydraulic Clutch Pedal System
CONSTRUCTION
^
The hydraulic clutch pedal is connected to the master cylinder via a rod.
^

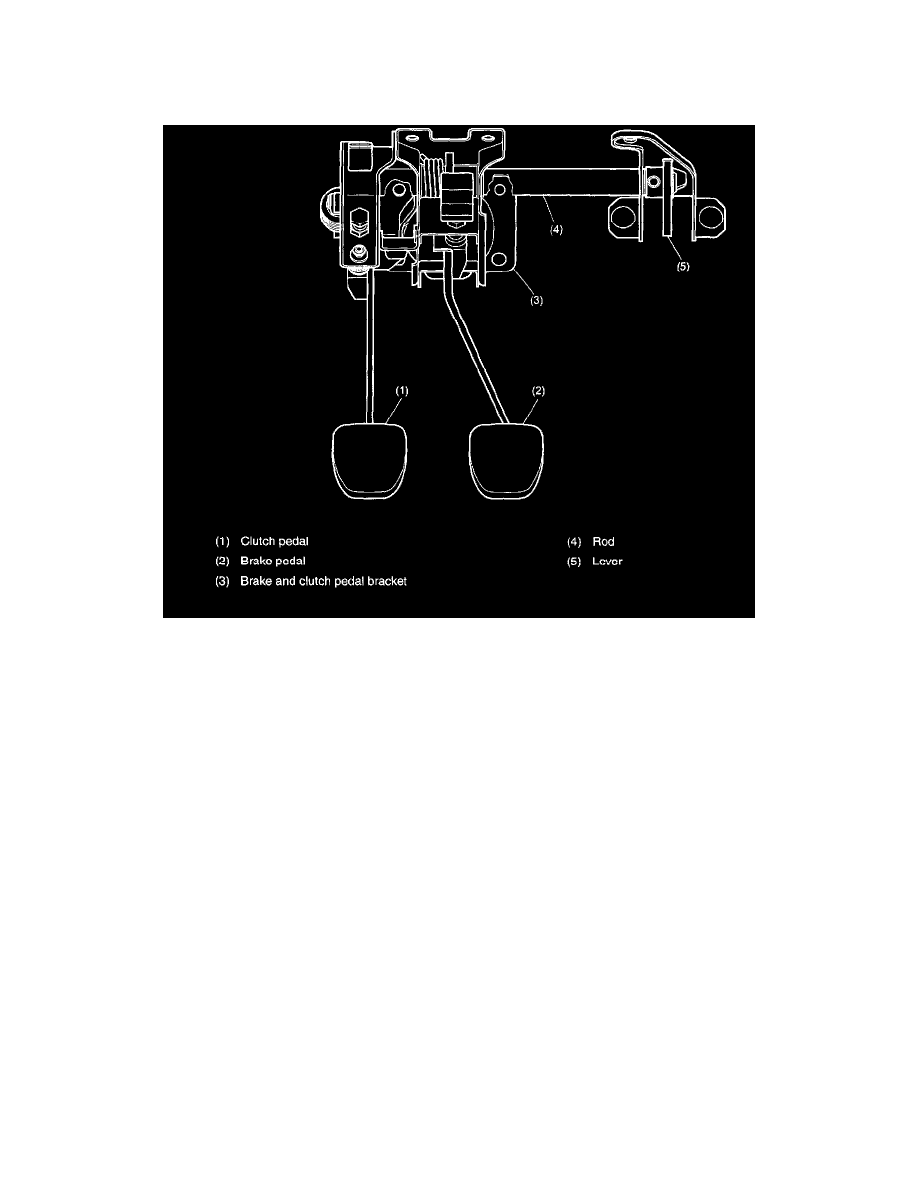

The clutch pedal and brake pedal are mounted on the same bracket.
^
The clutch pedal has a mechanism that reduces (assists) the force required to depress the clutch pedal and reduce the initial pedal depressing force.
^
A starter interlock mechanism is provided to prevent the engine from starting unless the clutch pedal is pressed.
OPERATION
STARTER INTERLOCK MECHANISM
