Forester F4-2.5L SOHC (2004)
Apply grease (SUNLIGHT 2: P/N 003602010 to the contact point of release lever and operating cylinder.
3. Confirm that the retainer spring is securely fitted by observing it through the main case hole.
4. Install the release bearing and fasten it with two clips.

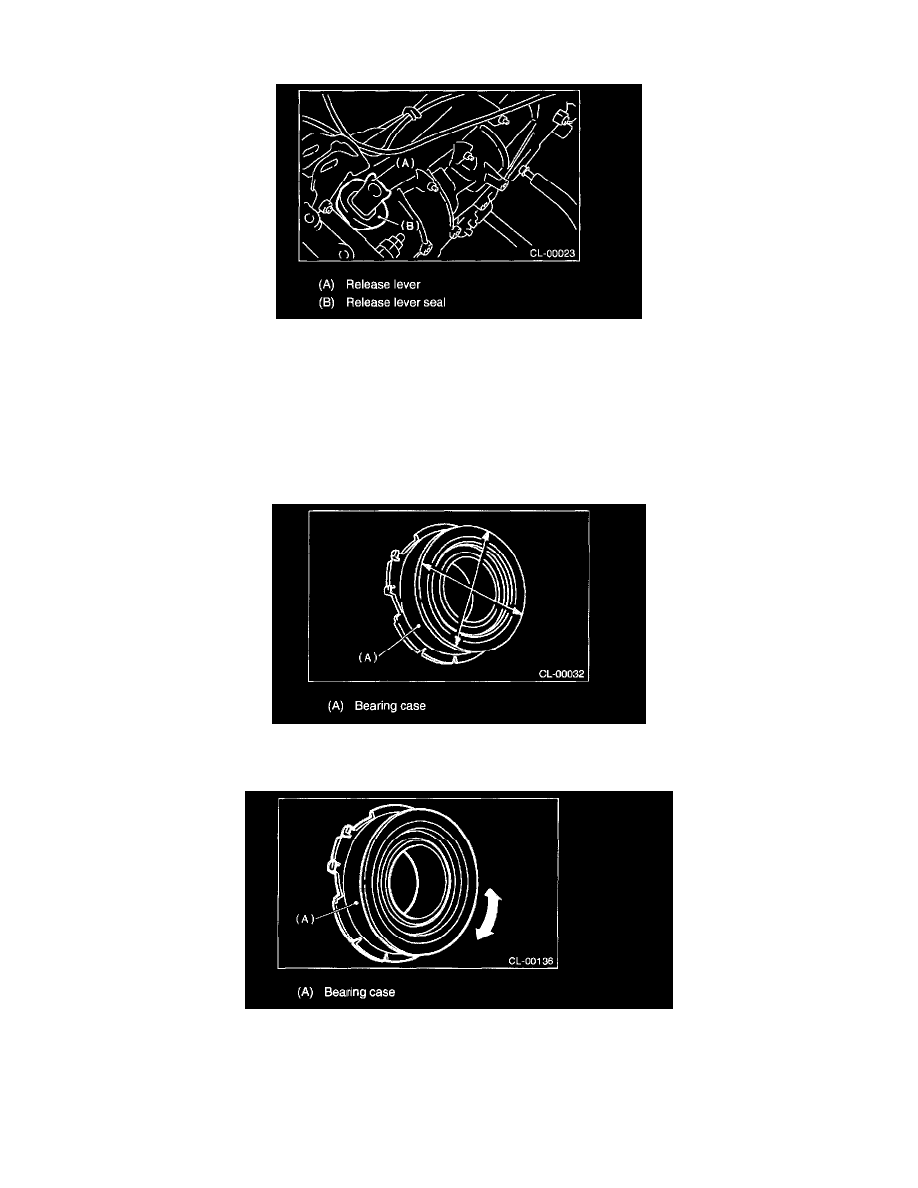

5. Install the release lever seal.
6. Verify that the bearing moves smoothly with operating release fork.
7. Install the transmission assembly.
INSPECTION
RELEASE BEARING
NOTE: Since this bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent when servicing the clutch.
1. Check the bearing for smooth movement by applying force in the radial direction.
Radial direction stroke: 1.6 mm (0.063 inch)
2. Check the bearing for smooth rotation by applying pressure in the thrust direction.
3. Check wear and damage of the bearing case surface contacting with lever.
RELEASE LEVER
