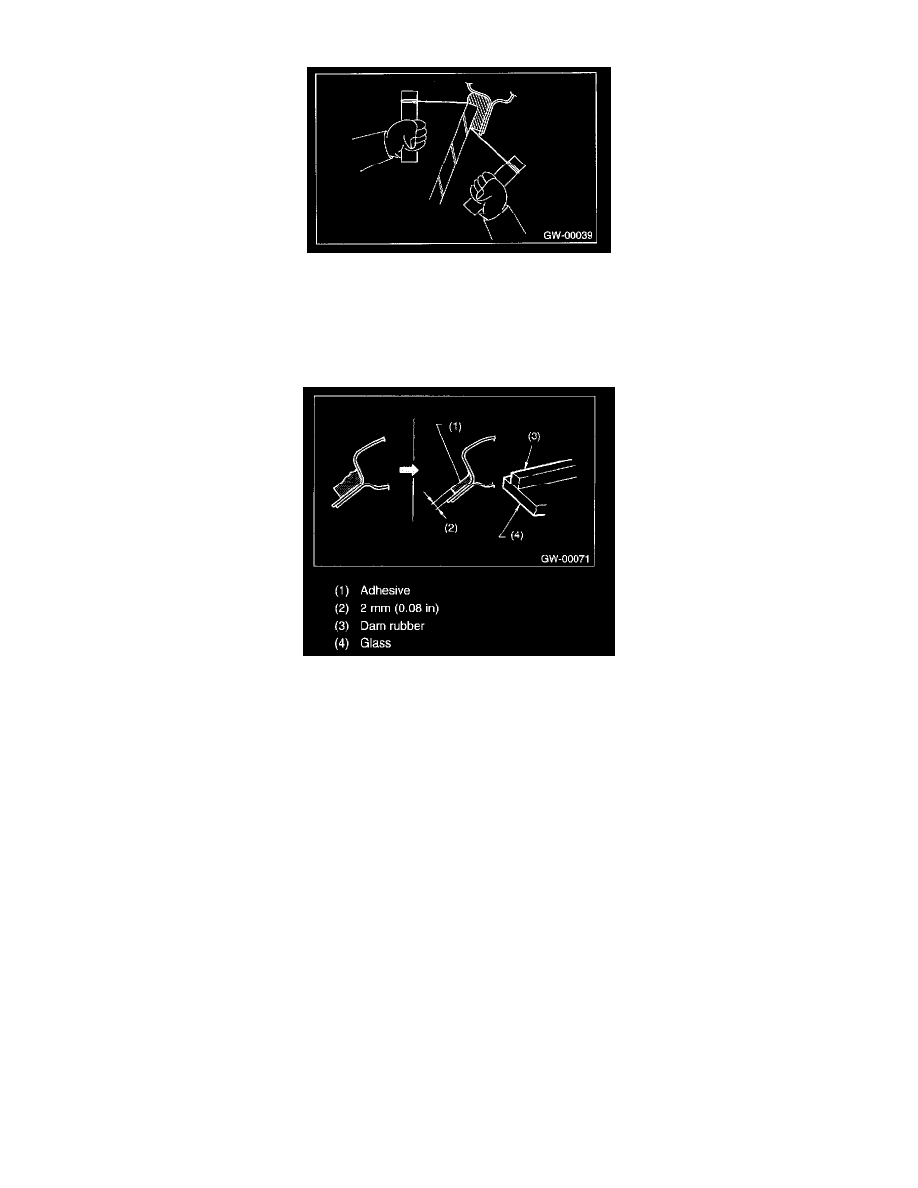

4. Make a hole in the adhesive layer using a drill or knife.

5. Pass the piano wire through the hole, and attach securely both the wire ends to pieces of wood.
6. Pull the wire ends alternately to cut off the adhesive layer.

INSTALLATION

1. Clean the external circumference of windshield glass with alcohol or white gasoline.

2. Remove the adhesive layer on the body using cutter knife to obtain smooth face 2 mm (0.08 in) thick.
3. Clean the body with alcohol or white gasoline to remove thoroughly chips, dusts, and dirts from body face.
