Splash Guard: Service and Repair

FRONT UNDER COVER

REMOVAL

1. Lift up the vehicle.

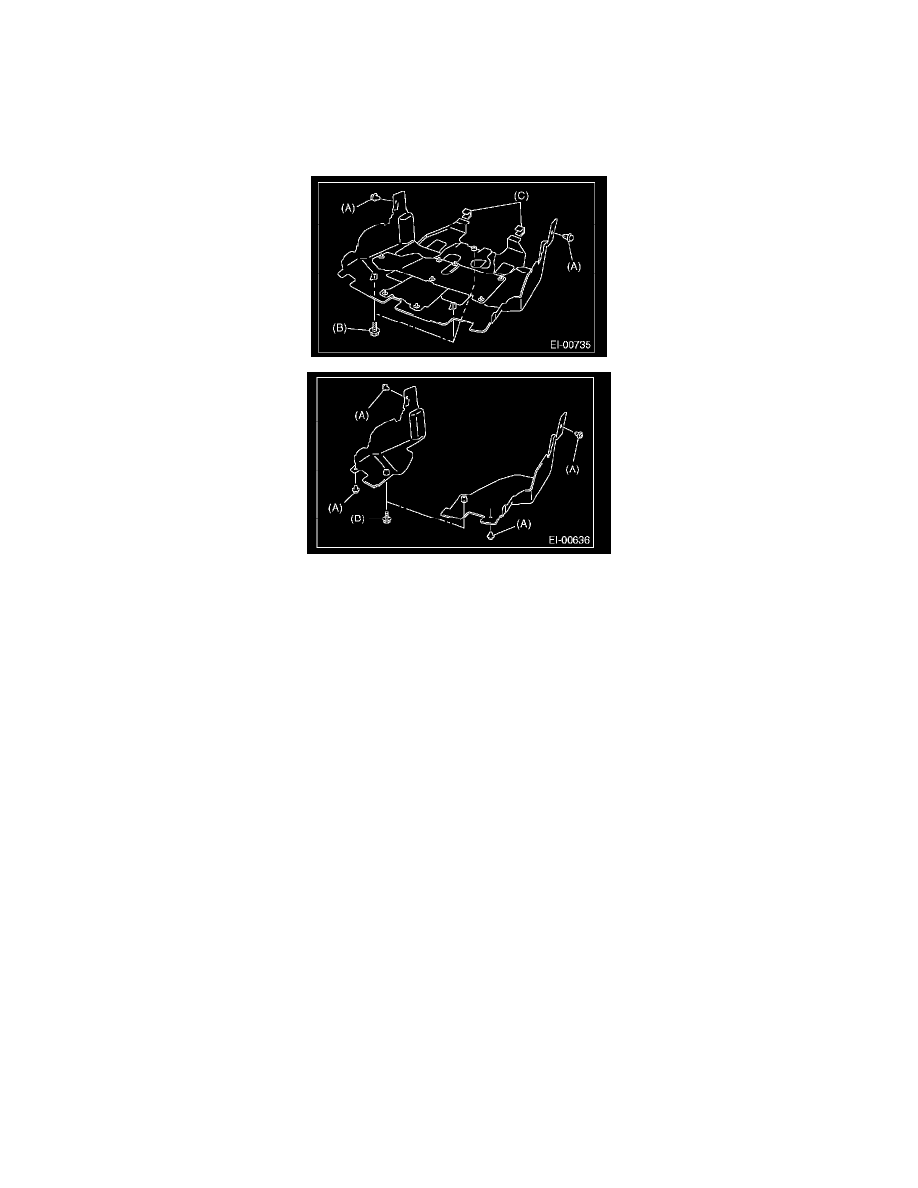

2. Remove clips (A) and (C), and bolts (B) in the front fender, then remove the front under cover.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 14 N.m (1.42 kgf-m, 10.3 ft-lb)
