Impreza F4-2.5L SOHC (2003)
Coolant: Testing and Inspection
Engine Coolant
INSPECTION
RELATIONSHIP OF SUBARU COOLANT CONCENTRATION AND FREEZING TEMPERATURE

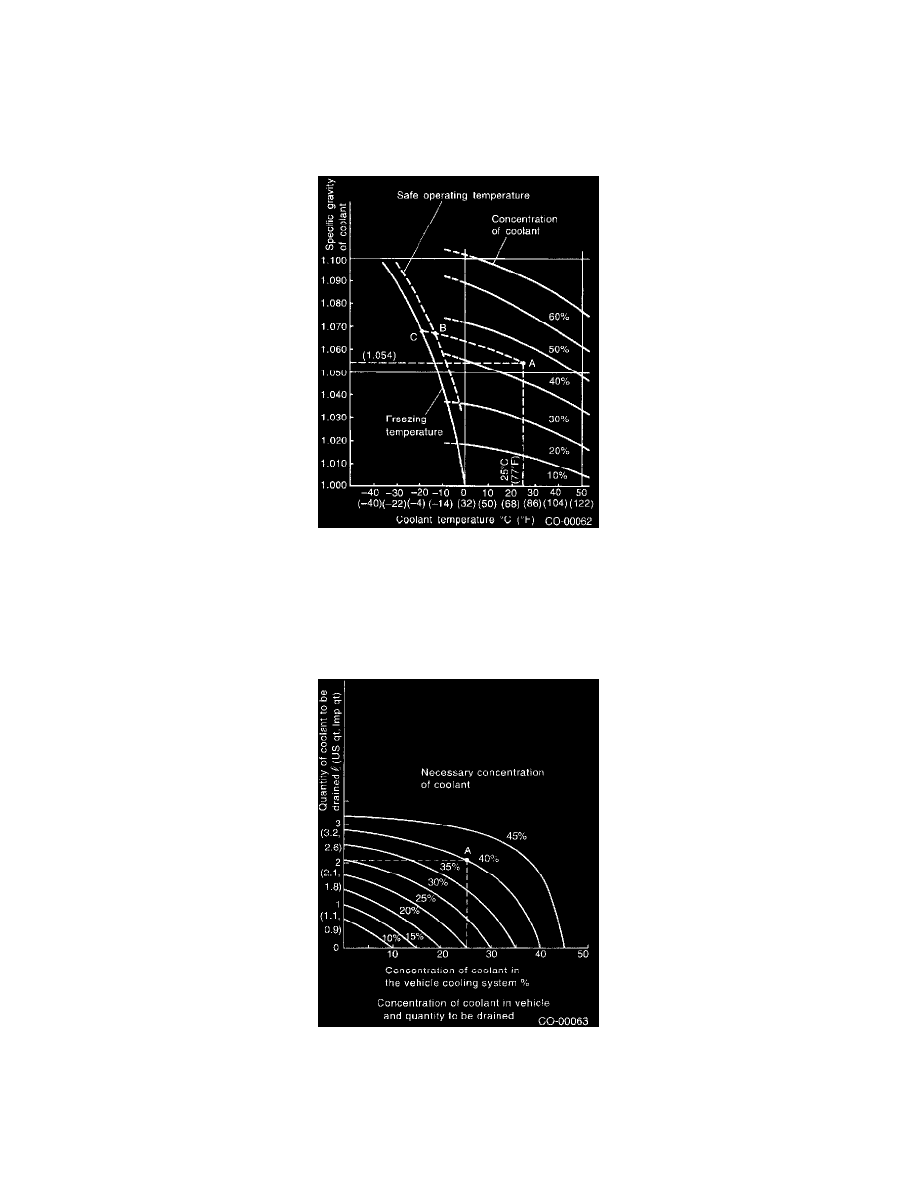

The concentration and safe operating temperature of the SUBARU coolant is shown in the diagram. Measuring the temperature and specific
gravity of the coolant will provide this information.
[Example] If the coolant temperature is 25°C (77°F) and its specific gravity is 1.054, the concentration is 45% (point A), the safe operating
temperature is -14°C (7°F) (point B), and the freezing temperature is -20°C (-4°F) (point C).
PROCEDURE TO ADJUST THE CONCENTRATION OF THE COOLANT
To adjust the concentration of the coolant according to temperature, find the proper fluid concentration in the above diagram and replace the
necessary amount of coolant with an undiluted solution of SUBARU genuine coolant (concentration 50%)
The amount of coolant that should be replaced can be determined using the diagram.
[Example]
Assume that the coolant concentration must be increased from 25% to 40%. Find point A, where the 25% line of coolant concentration intersects
with the 40% curve of the necessary coolant concentration, and read the scale on the vertical axis of the graph at height A. The quantity of coolant
to be drained is 2.1 liters (2.2 US quarts 1.8 Imp quarts). Drain 2.1 liters (2.2 US quarts 1.8 Imp quarts) of coolant from the cooling system
and add 2.1 liters (2.2 US quarts 1.8 Imp quarts) of the undiluted solution of SUBARU coolant.
If a coolant concentration of 50% is needed, drain all the coolant and refill with the undiluted solution only.
To prevent cooling system leaks, always add Genuine Subaru cooling system Conditioner (Part No. SOA635071) whenever the coolant is
