Grille: Service and Repair

FRONT GRILLE

REMOVAL

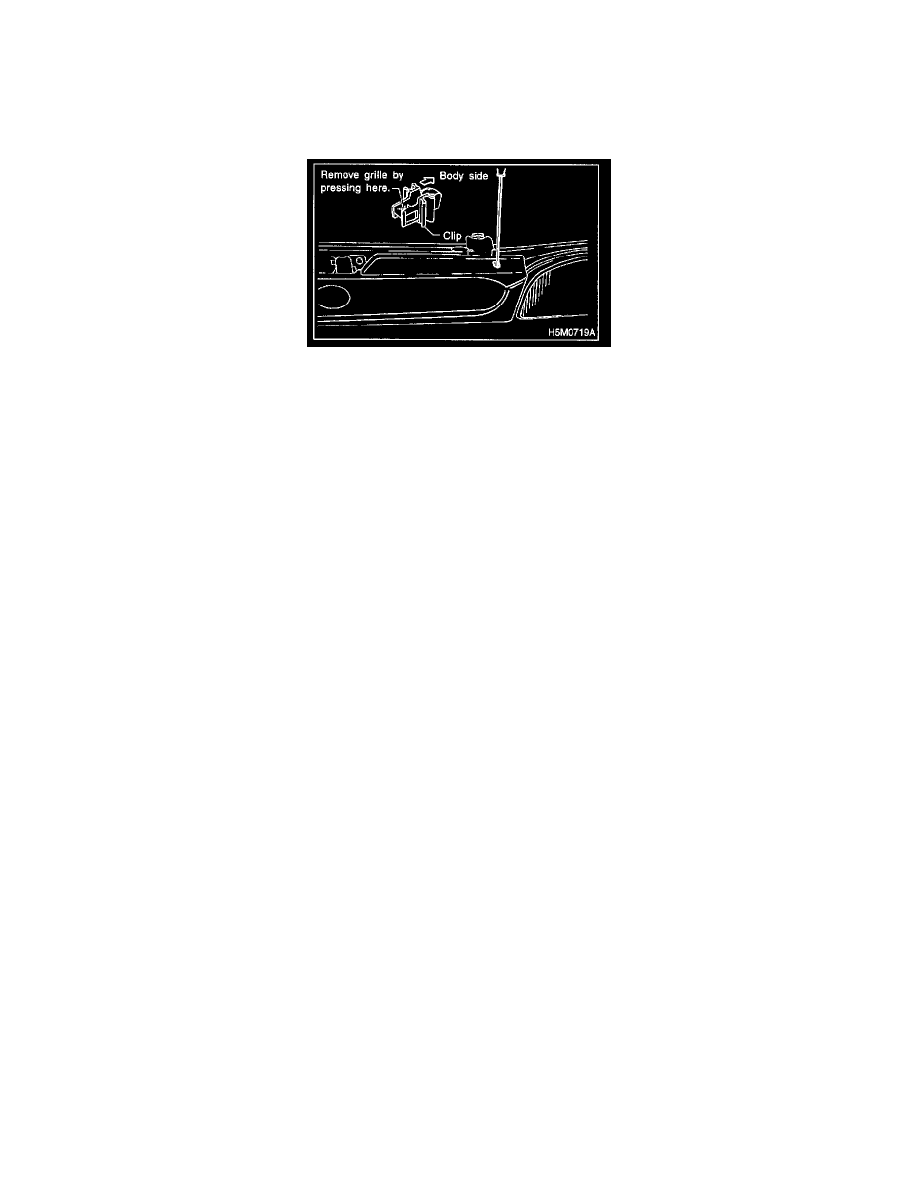

Remove two upper clips from body panel. To facilitate removal, press portion shown in figure using screwdriver while lightly pulling front grille.

INSTALLATION

Install in the reverse order of removal.

NOTE:  Attach all clips to grille. Align them with clip hole in body and push them into place.
