Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
Brake Caliper: Service and Repair
Disassembly and Assembly
Front
DISASSEMBLY
14 inch TYPE
1. Clean mud and foreign particles from caliper body assembly and support.
CAUTION: Be careful not to allow foreign particles to enter inlet (at brake hose connector).

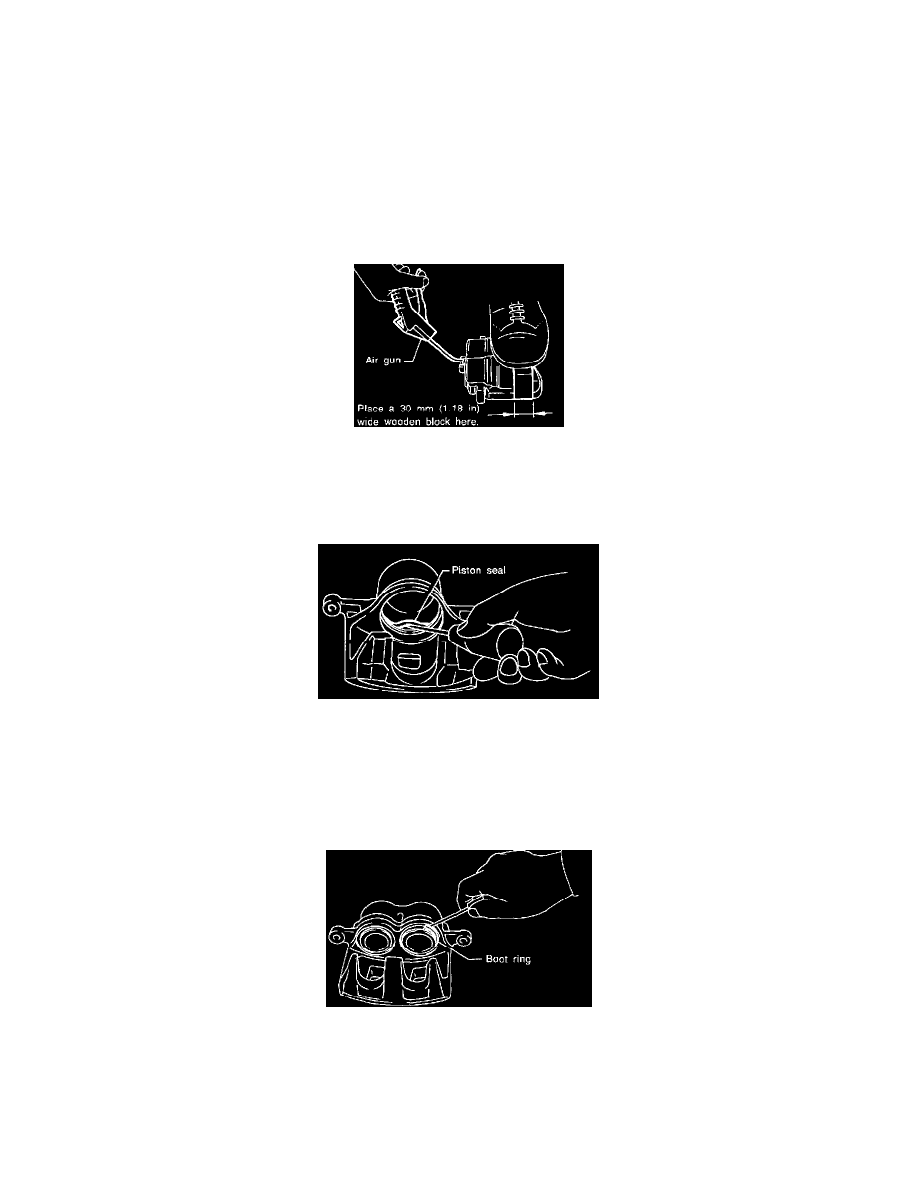

2. Gradually supply compressed air via caliper body brake hose to force piston out.
CAUTION:
-
Place a wooden block as shown in Figure to prevent damage to piston.
-
Do not apply excessively high-pressure.
3. Remove piston boot.
4. Remove piston seal from caliper body cylinder.
5. Remove guide pin and boot from caliper body.
15 inch AND 16 inch TYPE
1. Clean mud and foreign particles from caliper body assembly and support.
CAUTION: Be careful not to allow foreign particles to enter inlet (at brake hose connector).
2. Using a standard screwdriver, remove boot ring from piston.
3. Remove boot from piston end.
4. Gradually supply compressed air via caliper body brake hose to force piston out.
