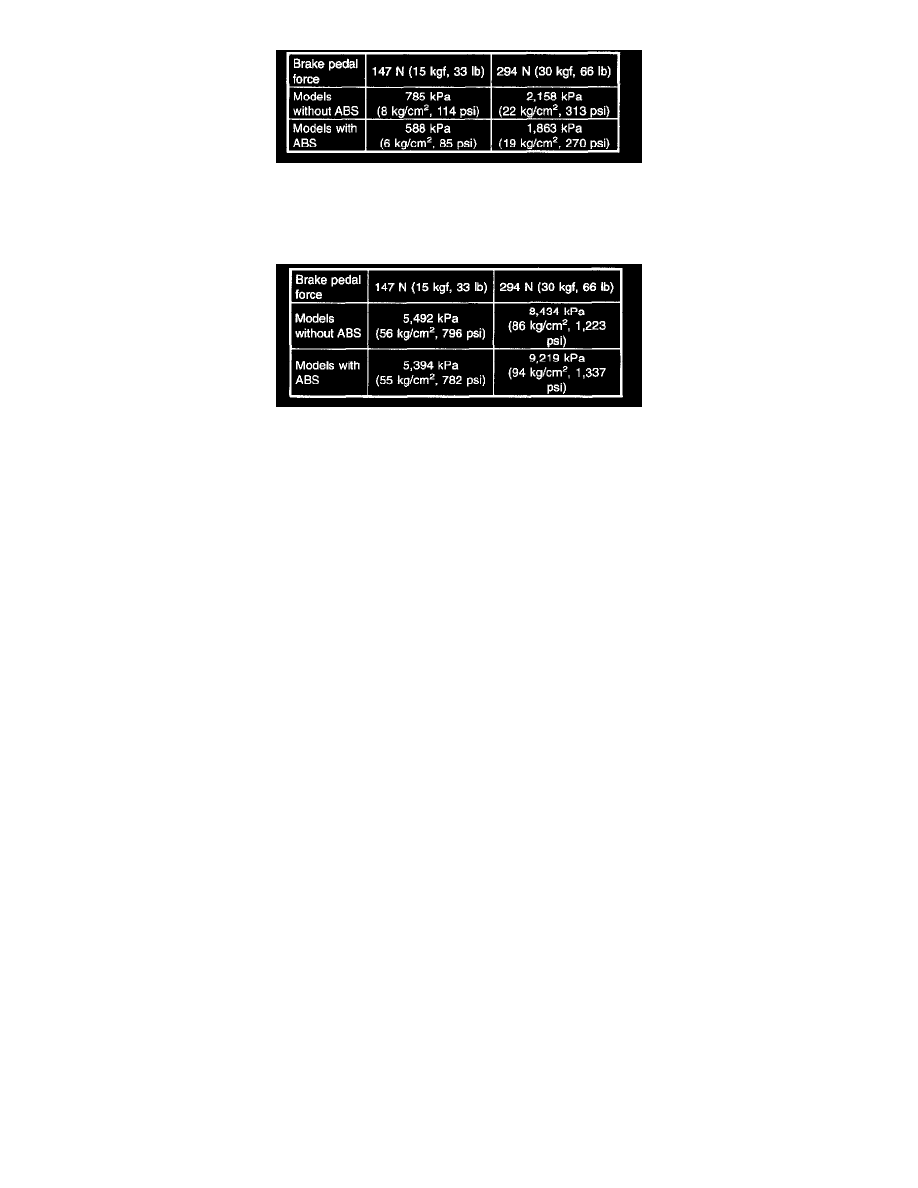

Turn off engine, and set the vacuum gauge reading at "0". Then, check the fluid pressure when brake pedal is depressed. The pressure must be greater
than the standard value listed below.

Boosting action check

Set the vacuum gauge reading at 66.7 kPa (500 mm-Hg, 19.69 inch-Hg) by running engine. Then, check the fluid pressure when brake pedal is
depressed. The pressure must be greater than the standard value listed below.
