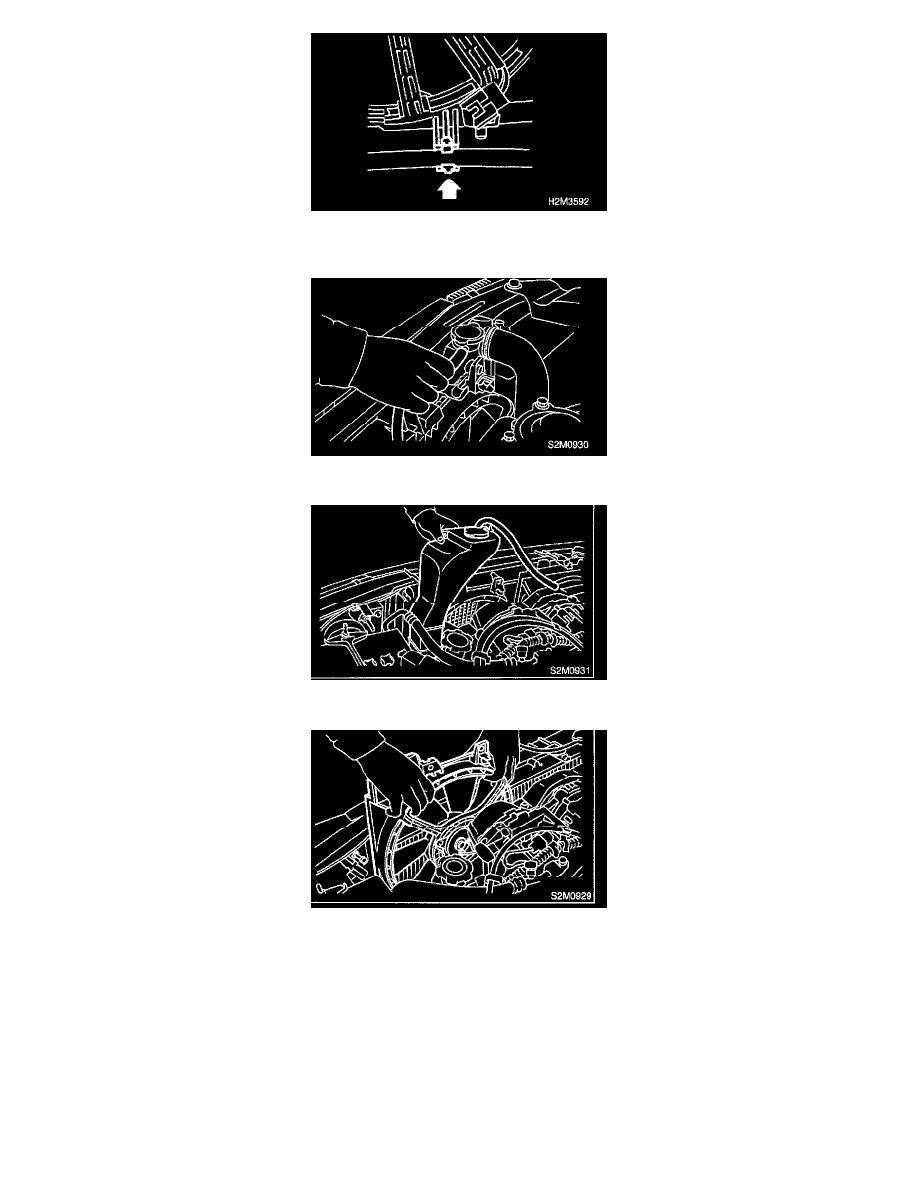

7. Detach ATF cooler hose attached to a clip under the radiator main fan shroud.
8. Lower the vehicles.

9. Disconnect over flow hose.

10. Remove reservoir tank.

11. Remove radiator main fan assembly and sub fan motor assembly.
