Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
Muffler: Service and Repair
A: REMOVAL

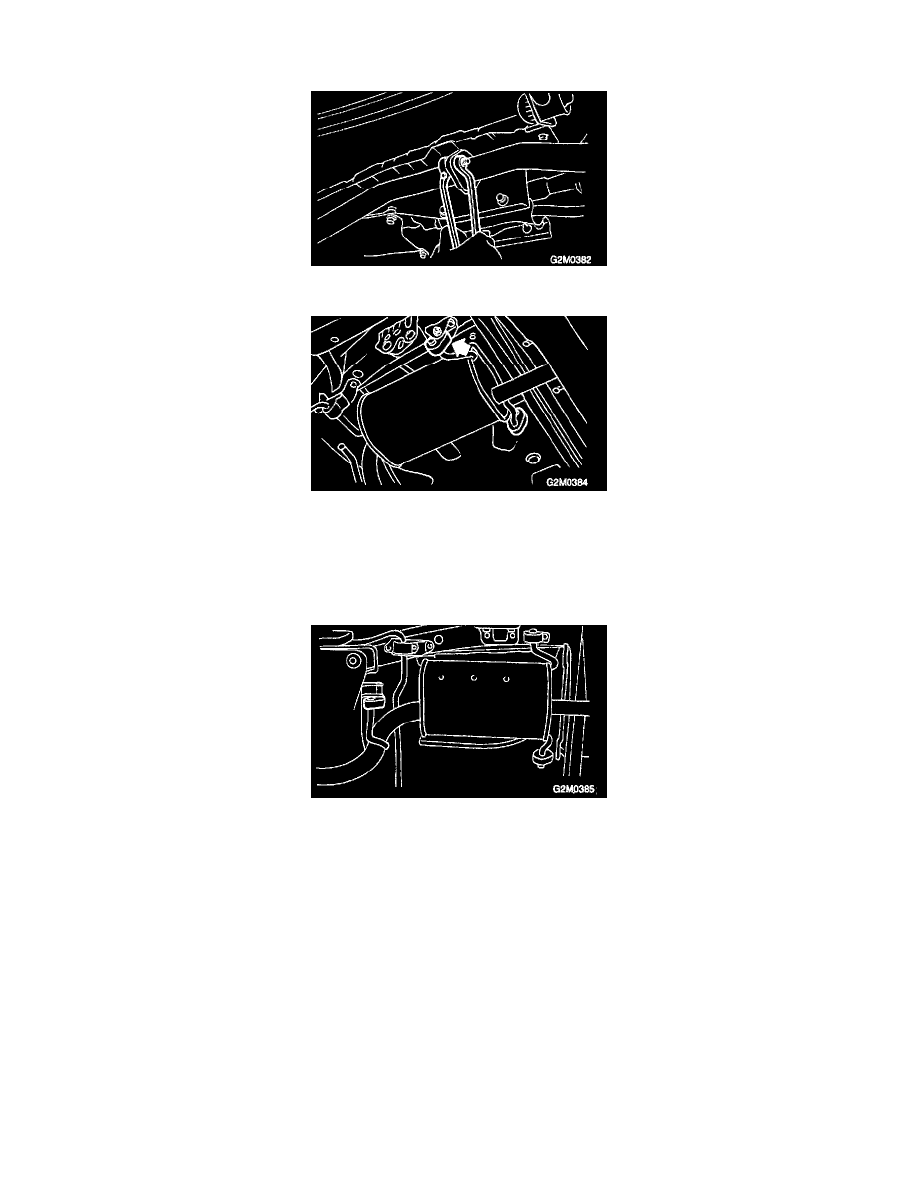

1. Separate muffler from rear exhaust pipe.
2. Remove left and right rubber cushions.
CAUTION: Be careful not to pull down front exhaust pipe and front catalytic converter.
NOTE: To facilitate removal, apply a coat of SUBARU CRC to mating area of rubber cushions in advance. SUBARU CRC (Part No.
004301003)
3. Remove front rubber cushion, and detach muffler assembly.
NOTE: To facilitate removal, apply a coat of SUBARU CRC to mating area of rubber cushion in advance. SUBARU CRC (Part No. 004301003)
B: INSTALLATION
Install in the reverse order of removal.
CAUTION: Replace gasket with a new one.
