Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
^
When disconnecting pipe C, use two wrenches to prevent deformities.
^
Be careful to keep pipe connections free from foreign matter.

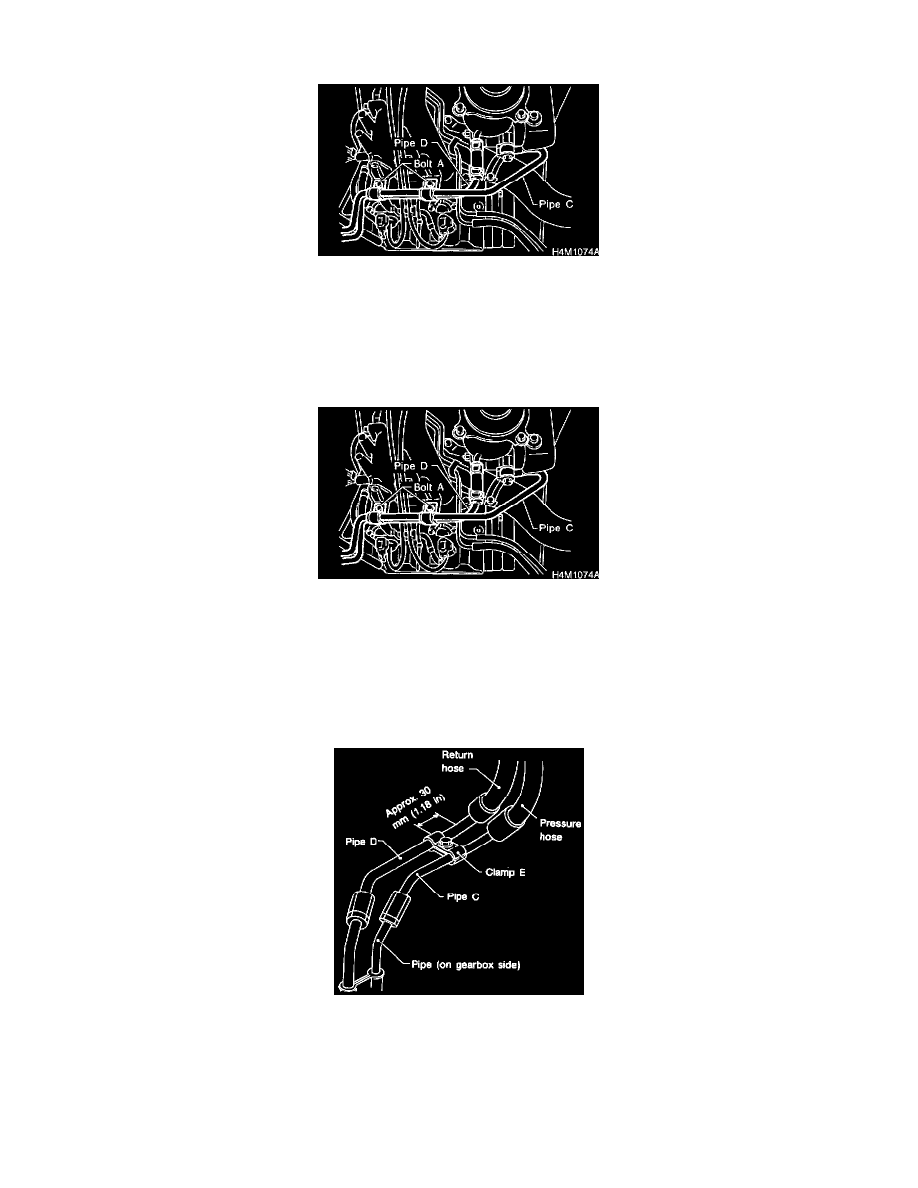

6. Remove bolt A. Disconnect pipe C from oil pump. Disconnect pipe D from oil tank.
CAUTION:
^
Do not allow fluid from the hose end to come into contact with pulley belt.
^
To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.
INSTALLATION
1. Interconnect pipes C and D.
Tightening torque:
Joint nut 15 Nm (1.5 kgf-m, 10.8 ft. lbs.)
CAUTION: Visually check that hose between tank and pipe D is free from bending or twisting.
2. Tighten bolt A.
Tightening torque: 13 Nm (1.3 kgf-m, 9.4 ft. lbs.)

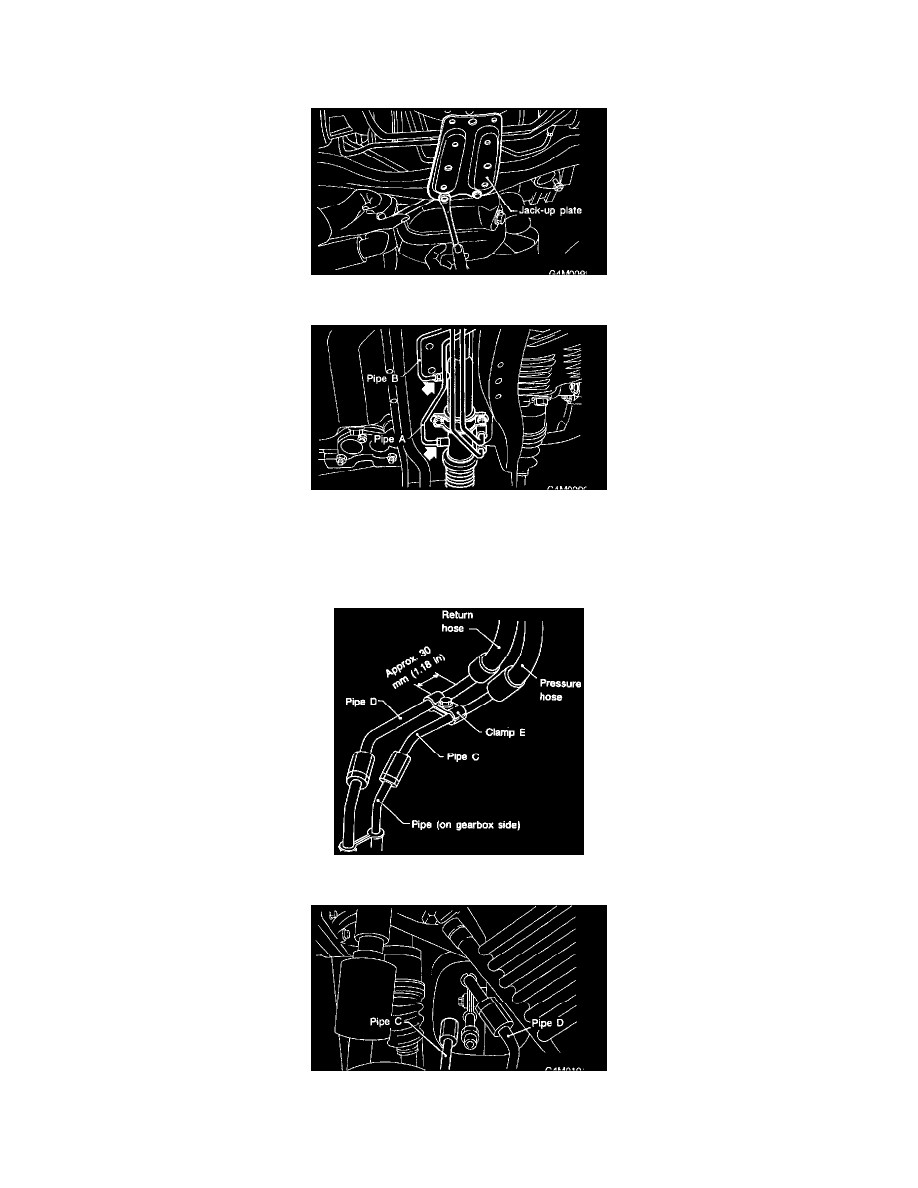

3. Temporarily connect pipes C and D to pipes (on the gearbox side).
4. Temporarily install clamp E on pipes C and D.
CAUTION: Ensure that the "8" letter side of clamp E is on the pipe C side.
5. Tighten joint nut.
Tightening torque: 15 Nm (1.5 kgf-m, 10.8 ft. lbs.)
6. Tighten clamp E firmly.
