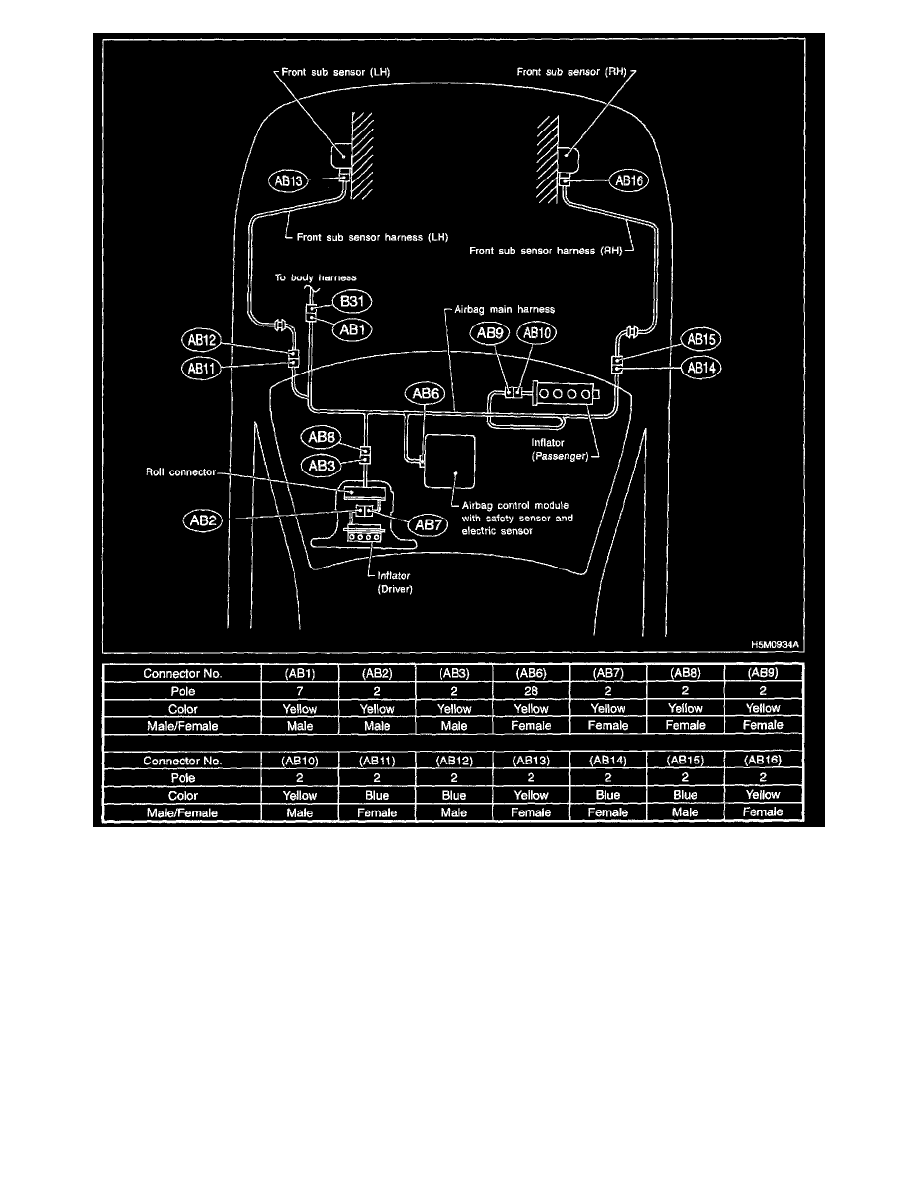

Air Bag System - Components, Harnesses, And Connectors

Restraint Systems
Air Bag Systems
Roll Connector <--> [Clockspring Assembly / Spiral Cable, Air Bag] / Component Locations
Page 4604
