Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
Clutch Master Cylinder: Service and Repair
Disassembly and Assembly
C: DISASSEMBLY

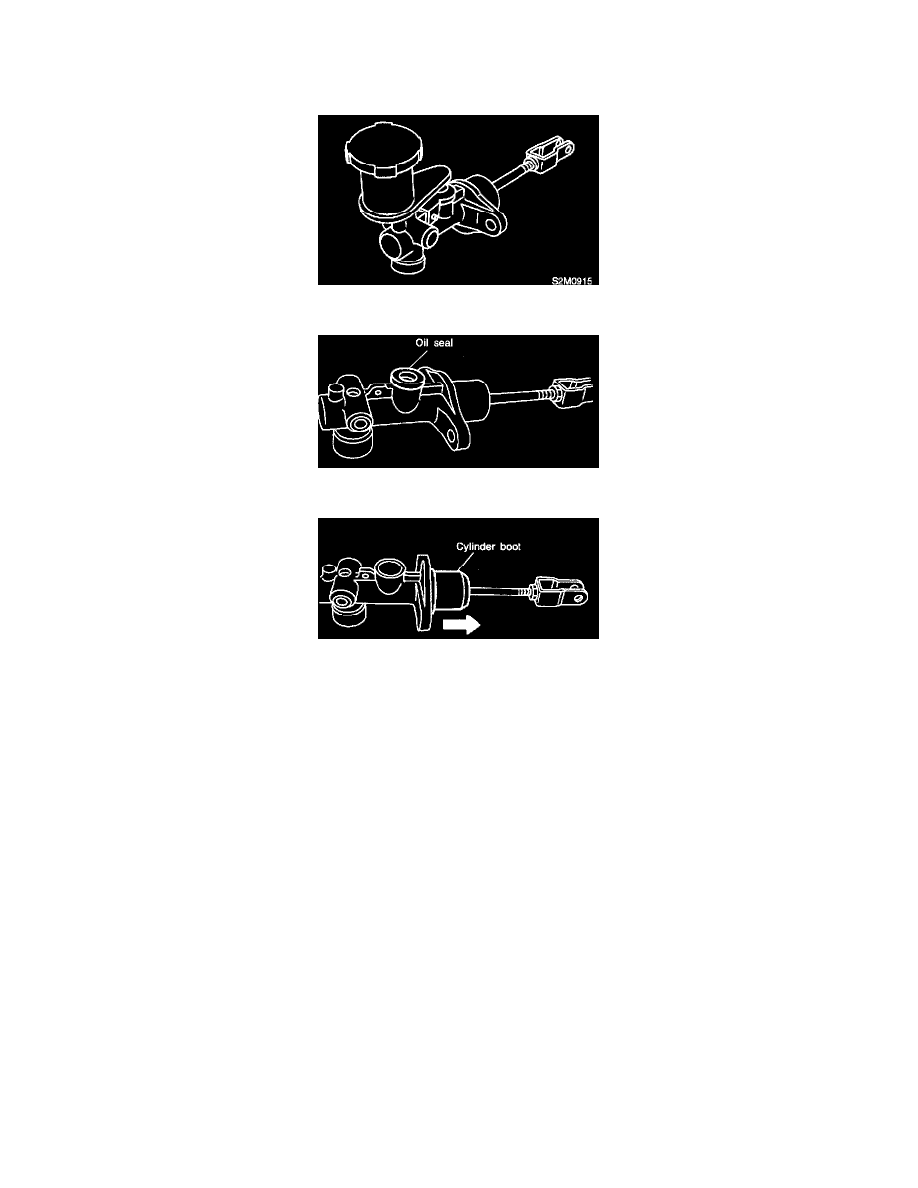

1. Remove straight pin and reservoir tank.
2. Remove oil sealing.
3. Move the cylinder boot backward.
4. Remove snap ring.
CAUTION: Be careful when removing the snap ring to prevent the rod, washer, piston and return spring from flying out.
D: ASSEMBLY
CAUTION: Apply a coat of grease to the contacting surfaces of the push rod and piston before installation.
To assemble the master cylinder, reverse the sequence of disassembly procedure.
