Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
Clutch Slave Cylinder: Service and Repair

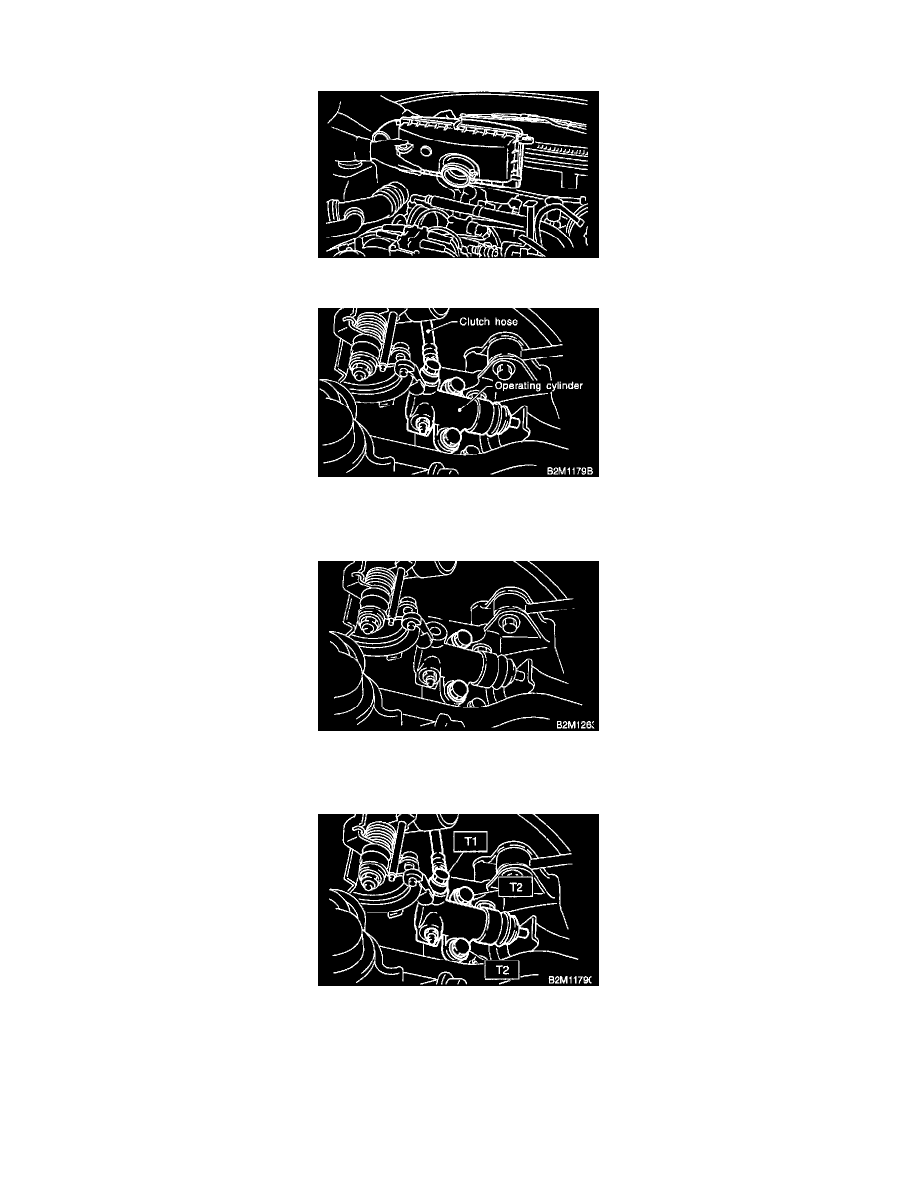

A: REMOVAL
1. Remove air cleaner case.
2. Remove clutch hose from operating cylinder.
CAUTION: Cover hose joint to prevent brake fluid from flowing out.
3. Remove operating cylinder from transmission.
B: INSTALLATION
1. Install in the reverse order of removal.
NOTE: Before installing operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of clutch release lever and operating
cylinder.
Tightening torque:
T1: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
T2: 37 Nm (3.8 kgf-m, 27.5 ft. lbs.)
