Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)

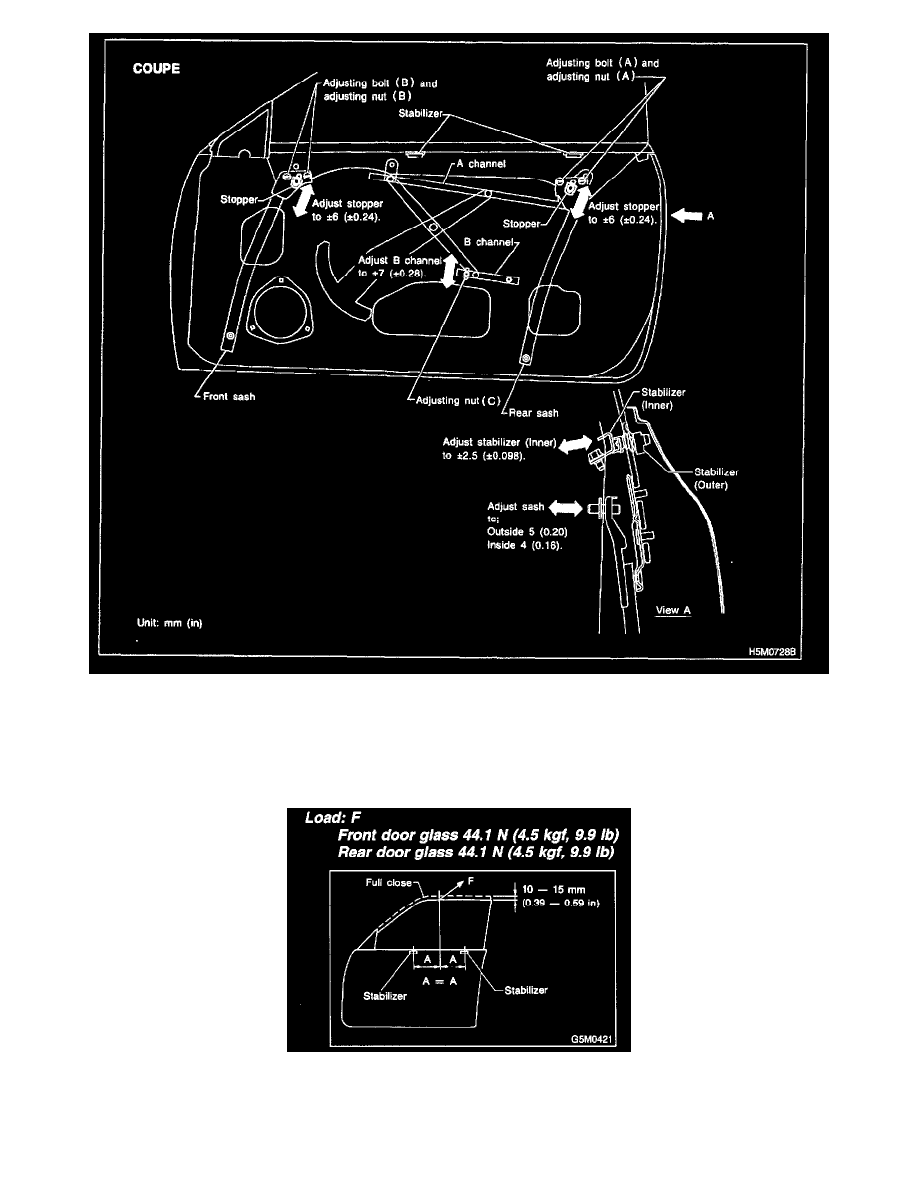

1. DOOR GLASS FIT ADJUSTMENT
Before adjusting door glass alignment, ensure adjusting bolts for stabilizers, upper stoppers and sashes are loose and glass is raised so that it is in
contact with upper and side weatherstrip.
1. Temporarily tighten one of the two rear sash adjusting bolts, at midpoint of oblong hole on inner panel.
2. Temporarily tighten regulator B channel at a position slightly lower than midpoint of oblong hole on inner panel.
3. Lower door glass 10 to 15 mm (0.39 to 0.59 in) from fully closed position. While applying outward pressure load) to upper edge of glass
above midpoint of two outer stabilizers, press inner stabilizer until it just touches the glass, then secure it.
2. REMEDY FOR UNEQUAL DIMENSIONS, BETWEEN UPPER, LOWER AND CENTER PILLAR SIDES
