Windshield Washer Reservoir: Service and Repair

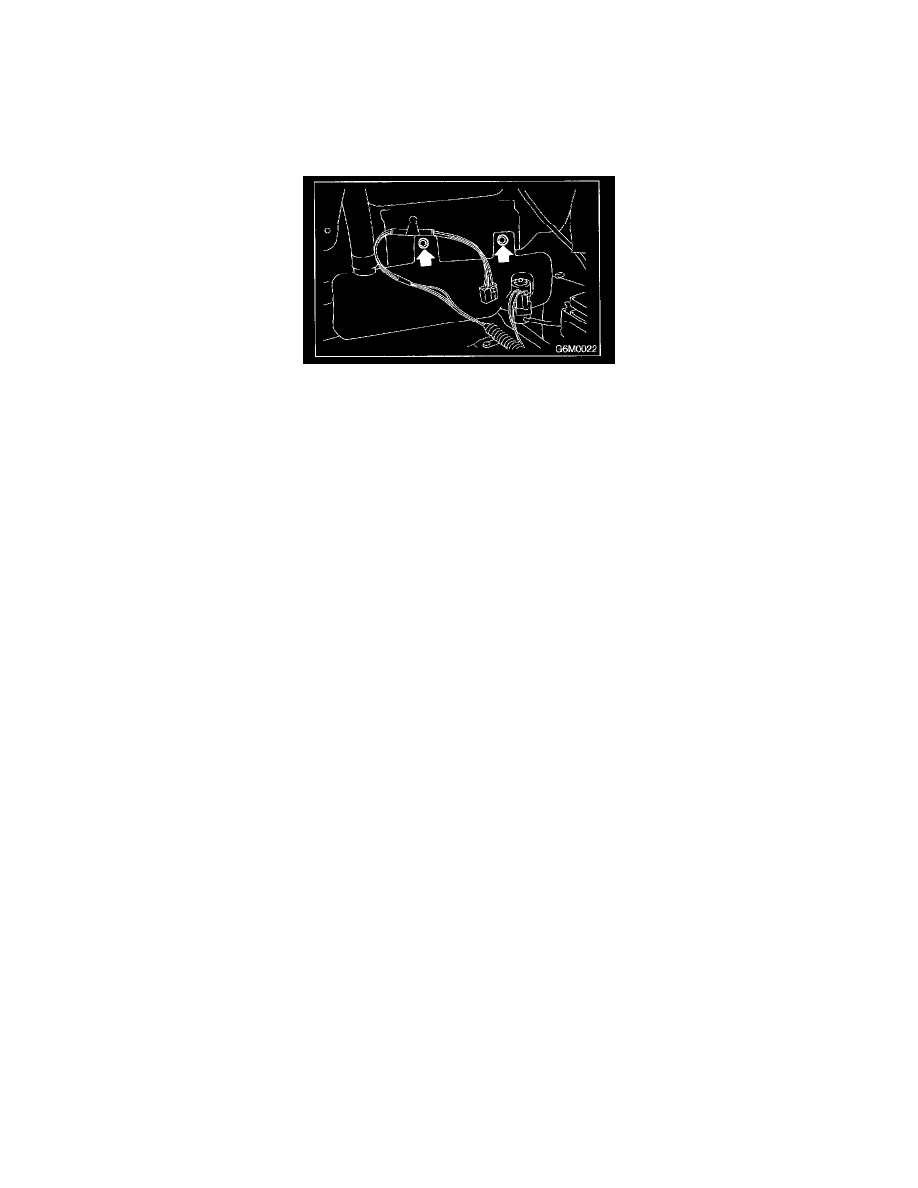

Rear Washer Reservoir

REMOVAL

1. Remove rear quarter trim.
2. Disconnect washer hose and connector.

3. Remove attaching bolts.

INSTALLATION

Install in the reverse order of removal.

Tightening torque:  5.9 N.m 0.6 kgf-m, 4.3 ft-lb)
