Impreza 2.5 RS Sedan AWD F4-2.5L SOHC (2002)

Page 1
background image

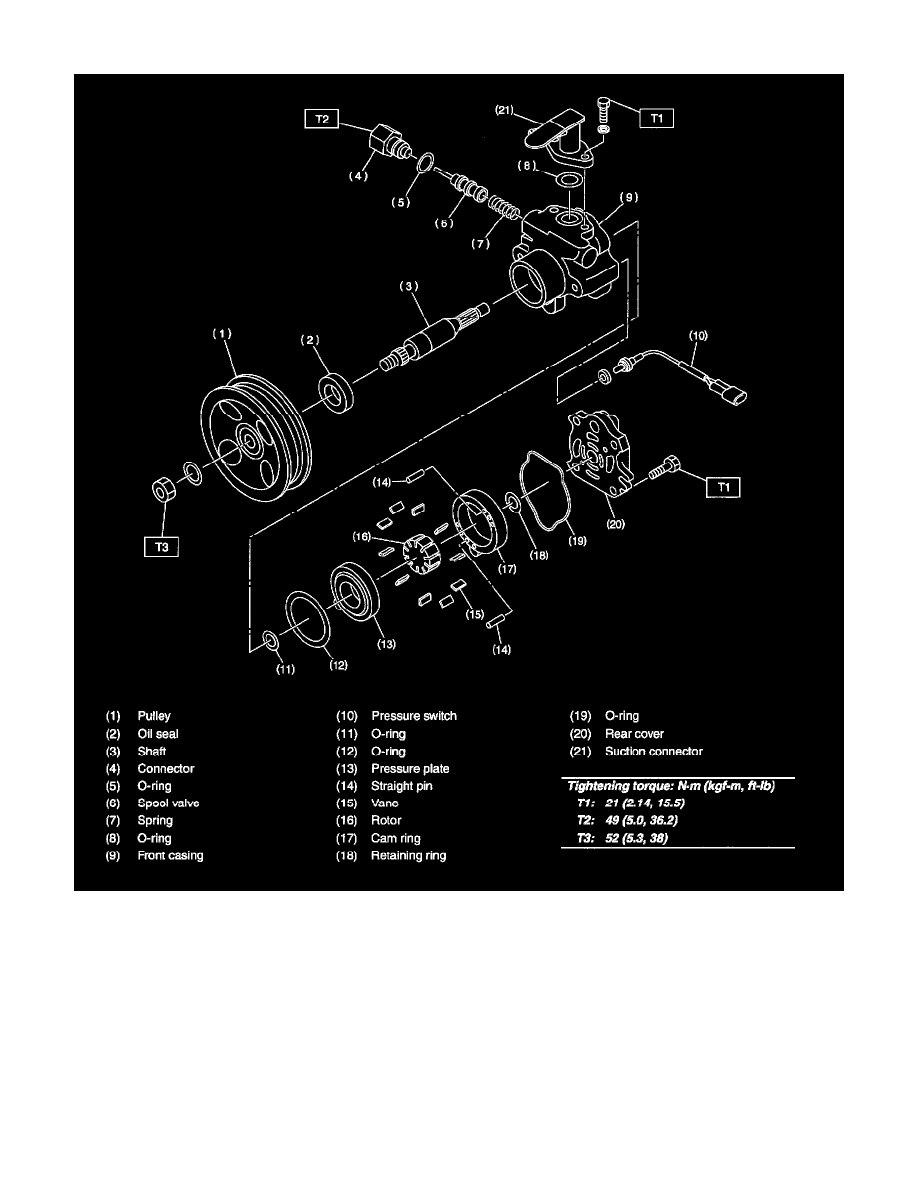

Power Steering Pump: Diagrams

NON-TURBO MODEL
